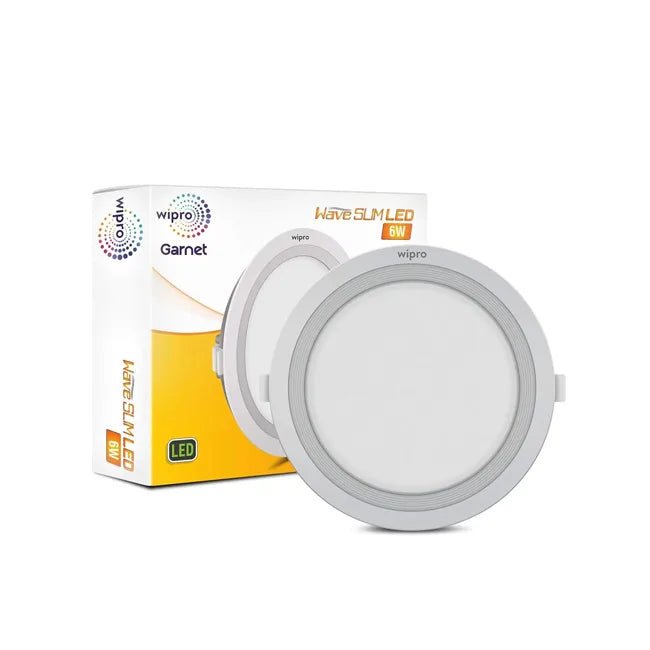

Wipro Garnet Wave Slim Recessed LED Panel, Round (2 Years Warranty)

Wipro Garnet Wave Slim Recessed LED Panel, Round is a premium recessed ceiling light with an ultra-slim profile and edge-lit optical design for smooth, uniform, glare-free illumination. The high-transmittance non-yellowing PMMA diffuser eliminates dark spots and hot spots across the full panel surface. Available in 6W, 10W, and 15W with three colour temperatures (3000K, 4000K, 6500K), it delivers up to 100 lumens per watt for up to 50% energy savings over conventional CFL fixtures. Integrated (inbuilt) driver connects directly to 220-240V AC mains – no external ballast or driver box required. Built-in protection handles high voltage up to 380V and surge events up to 2.5 KV.

Key Features

Ultra-slim profile: Low structural depth for effortless flush installation in tight, low-clearance false ceilings

Non-yellowing PMMA diffuser: Resists thermal ageing and UV degradation – maintains crisp, uniform light over time

Edge-lit optical system: Spreads light evenly across the full panel surface – no dark spots or harsh hot spots

Integrated (inbuilt) driver: Direct 220-240V AC connection – no external ballast box required

Heavy-duty electrical protection: Handles high voltage up to 380V and surge events up to 2.5 KV

Technical Specifications

Technical Specifications (Quick Reference)

Specification
Details

Brand
Wipro

Light Source
Edge-Lit LED

Wattage Options
6W / 10W / 15W

Input Voltage
220 – 240V AC

Colour Temperature
3000K / 4000K / 6500K

Luminous Efficacy
Up to 100 Lm/W

Diffuser Type
Anti-Glare Non-Yellowing PMMA

High Voltage Protection
Up to 380V

Surge Protection
Up to 2.5 KV

Driver
Integrated (inbuilt) – no external driver required

Dimmable
No – standard on/off

Package Contents
1 x Wipro Garnet Wave Slim Recessed LED Panel, Round

Variant Configuration

Colour Temperature
Wattage
Model Number

Warm White (3000K)
6W
DH10630

Neutral White (4000K)
6W
DH10640

Cool Day White (6500K)
6W
D710660

Warm White (3000K)
10W
DH11030

Neutral White (4000K)
10W
DH11040

Cool Day White (6500K)
10W
DH11060

Warm White (3000K)
15W
D711530

Neutral White (4000K)
15W
D711540

Cool Day White (6500K)
15W
D711560

Colour Temperature Selection Guide

Choose the Right Colour Temperature

3000K – Warm White: Cozy, golden ambience for bedrooms, living rooms, and hospitality lounges

4000K – Neutral White: Natural, clear light for kitchens, study spaces, corridors, and corporate workspaces

6500K – Cool Day White: Crisp, high-contrast illumination for bathrooms, retail floors, and utility zones

Recommended Applications

Where Wipro Garnet Wave fits best

Modern residential false ceilings: Living spaces, dining zones, and bedrooms with low-clearance gypsum ceilings

Corporate office spaces: Conference rooms, open-plan workspaces, and breakrooms requiring soft, fatigue-free light

Commercial and retail: Walkways, retail aisles, and waiting lobbies requiring efficient, uniform ambient light

Educational and healthcare: Classrooms, hospital corridors, and clinics where reliable, glare-free light is essential
