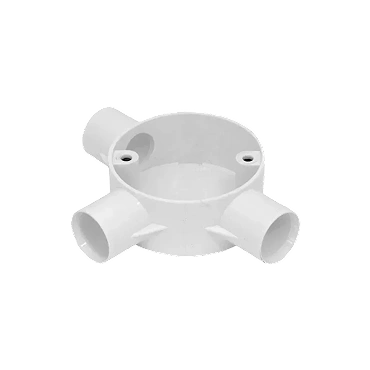

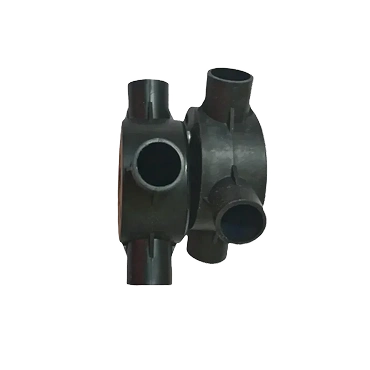

VIP PVC Surface Junction Box is a precision-engineered UPVC electrical enclosure manufactured by VIP Extrusions using automatic injection molding technology, designed specifically for surface-mounted wall conduiting applications. This junction box provides safe and accessible housing for electrical wire connections, splices, and terminations in exposed conduit installations.
Available in 3-way and 4-way configurations with 90-degree socket openings, this junction box integrates seamlessly with 19mm, 20mm, and 25mm conduit systems. The fire retardant UPVC construction ensures safety compliance while offering lightweight installation, corrosion resistance, and long-term durability. Each box includes a secure lid with screw fastening to protect connections from dust, moisture, and accidental contact, making it ideal for residential, commercial, and industrial surface wiring applications.
Technical Specifications (Quick Reference)
Specification
Details
Material
UPVC (Unplasticized Polyvinyl Chloride)
Mounting Type
Surface mounting for wall conduiting
Conduit Compatibility
19mm, 20mm, and 25mm diameter
Socket Configurations
3-way and 4-way with 90-degree openings
Manufacturing
Automatic injection molding
Standard Compliance
IS 3419 specifications
Safety Rating
FR (Fire Retardant)
Color Options
Black, Grey, White
Includes
Lid and screw
Recommended Applications
Surface Wiring Systems: Exposed conduit installations in basements, garages, workshops, and utility areas
Industrial Facilities: Factories and warehouses where surface-mounted conduit is standard practice
Commercial Renovations: Retrofit electrical installations without wall demolition
Outdoor Covered Areas: Covered patios, carports, and semi-outdoor spaces (with proper weatherproofing)
Temporary Installations: Construction sites and temporary power distribution systems
Circuit Branching: Distributing power and lighting circuits in multiple directions with 3-way or 4-way configurations
Installation Guidelines
Plan Junction Location: Mark box position at conduit intersection points; ensure accessibility for future maintenance
Mount Box to Wall: Secure the junction box directly to wall surface using appropriate screws and anchors; ensure box is level and firmly attached
Connect Conduits: Run surface conduits to the box socket openings (3-way or 4-way as needed); use appropriate saddles to support conduit runs
Pull and Connect Wires: Feed wires through conduits into the box; make connections using wire nuts or terminal blocks; leave adequate wire length for future work
Secure Lid: After completing all wire connections, attach the lid using the provided screw; ensure tight closure to protect connections from environmental exposure
