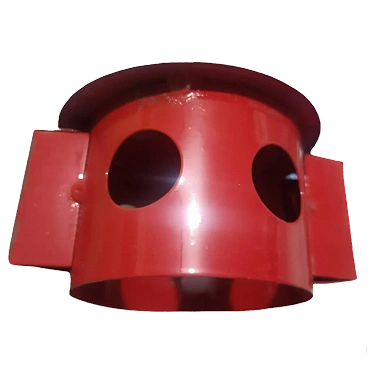

VIP Metal Spot Light Box is a specialized ceiling mounting solution manufactured by VIP Extrusions, engineered for installing recessed spotlights, downlights, and various ceiling light fixtures. Constructed from heavy-gauge mild steel, this electrical box provides secure housing for wiring connections while integrating seamlessly with 19mm electrical conduit systems for concealed installations.
The powder-coated red finish delivers dual benefits: superior rust and corrosion protection for long-term durability, plus easy identification during installation and future maintenance work. Designed for flush ceiling mounting, this spotlight box ensures your electrical connections are safely enclosed while providing a stable mounting platform for modern lighting fixtures.
Technical Specifications (Quick Reference)
Specification
Details
Material
Heavy gauge mild steel
Finish
Powder coated/plated
Color
Red
Conduit Compatibility
19mm electrical conduit
Primary Application
Spotlight, downlight, and ceiling light fixture mounting
Installation Type
Concealed ceiling mounting (flush or recessed)
Corrosion Protection
Powder-coated rust prevention
Recommended Applications
Recessed Spotlights: Primary mounting box for LED spotlights and halogen downlights
Ceiling Light Fixtures: Secure housing for pendant lights, flush-mount fixtures, and decorative ceiling lights
Residential Lighting: New home construction and renovation projects requiring modern lighting solutions
Commercial Spaces: Office buildings, retail stores, showrooms, and hospitality venues
Accent Lighting: Track lighting systems, display lighting, and architectural accent installations
False Ceiling Installations: Suspended ceiling systems requiring concealed electrical boxes
Installation Guidelines
Plan Box Location: Mark spotlight positions ensuring proper spacing and alignment; verify clearance above ceiling for box depth and fixture housing
Mount Securely: Attach the box to ceiling joists or structural supports using appropriate fasteners; ensure box is flush with ceiling surface or recessed as required
Connect Conduit: Run 19mm electrical conduit to the box entry point; secure conduit connections with appropriate fittings
Pull Wiring: Feed electrical cables through conduit into the box; leave 6-8 inches of wire for connections and future maintenance
Install Fixture: Connect spotlight or fixture wiring according to manufacturer instructions; secure fixture to box using provided mounting hardware and test operation
