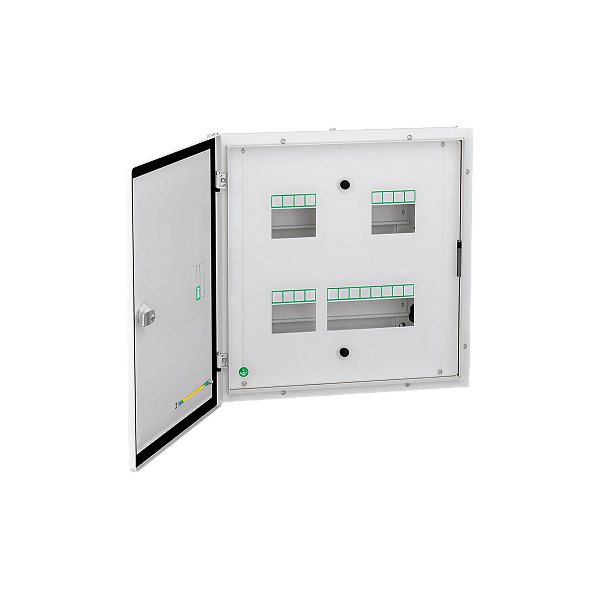

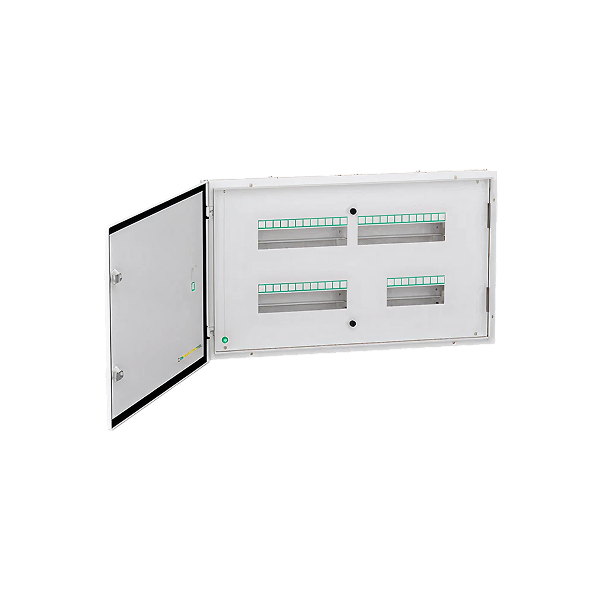

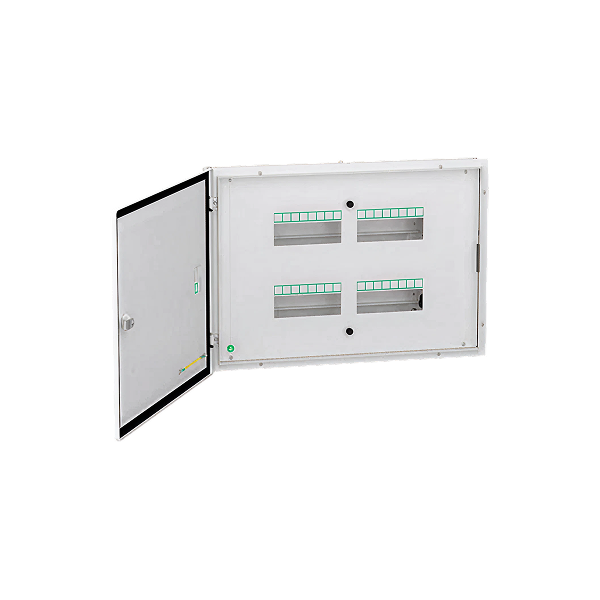

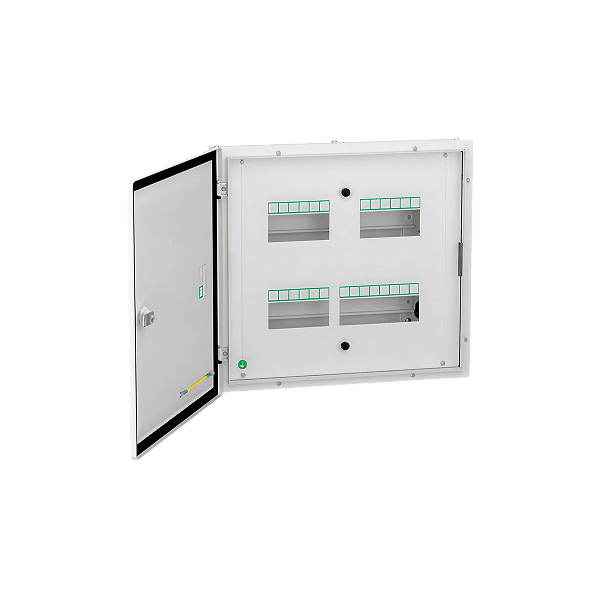

Schneider Electric Acti9 TPN Distribution Board is a three-phase neutral distribution board with double door enclosure, engineered for organizing and protecting electrical circuits in residential and commercial installations. The Acti9 series offers modular design for easy installation and maintenance of MCBs, RCCBs, and other protection devices.
Perfect for three-phase electrical systems in homes, offices, and commercial buildings, the double door configuration provides convenient access to circuit breakers and wiring. The robust construction and quality Schneider Electric engineering ensure reliable electrical distribution for installations in Bangalore requiring professional-grade distribution boards.
Technical Specifications (Quick Reference)
Specification
Details
Product Type
Three-Phase Neutral (TPN) Distribution Board
Series
Acti9
Configuration
Double door enclosure
Brand
Schneider Electric
Recommended Applications
Three-Phase Residential: Ideal for homes with three-phase electrical supply
Commercial Buildings: Perfect for offices, retail spaces, and commercial establishments
Industrial Applications: Suitable for light industrial electrical distribution
High-Load Installations: Essential for installations with heavy electrical loads
Modular Circuit Protection: Organize MCBs, RCCBs, and protection devices
Professional Installations: Reliable distribution board for professional electrical work
Installation Guidelines
Location Selection: Choose accessible location for distribution board installation
Mounting: Securely mount distribution board to wall using appropriate fasteners
MCB Installation: Install MCBs, RCCBs, and protection devices on DIN rail
Wiring: Connect incoming supply and outgoing circuits according to electrical plan
Testing: Test all circuits and protection devices before energizing system
