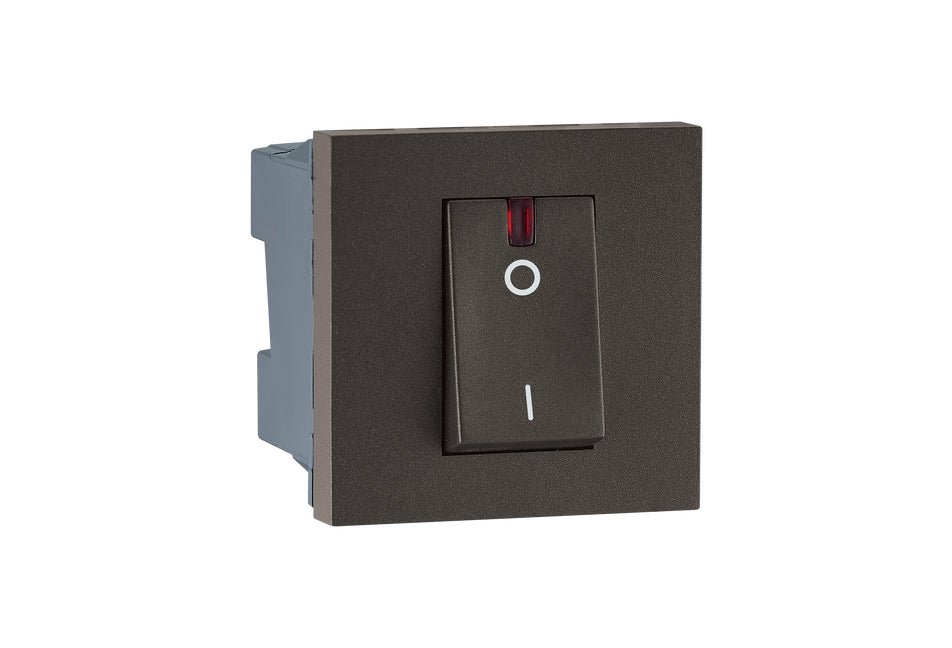

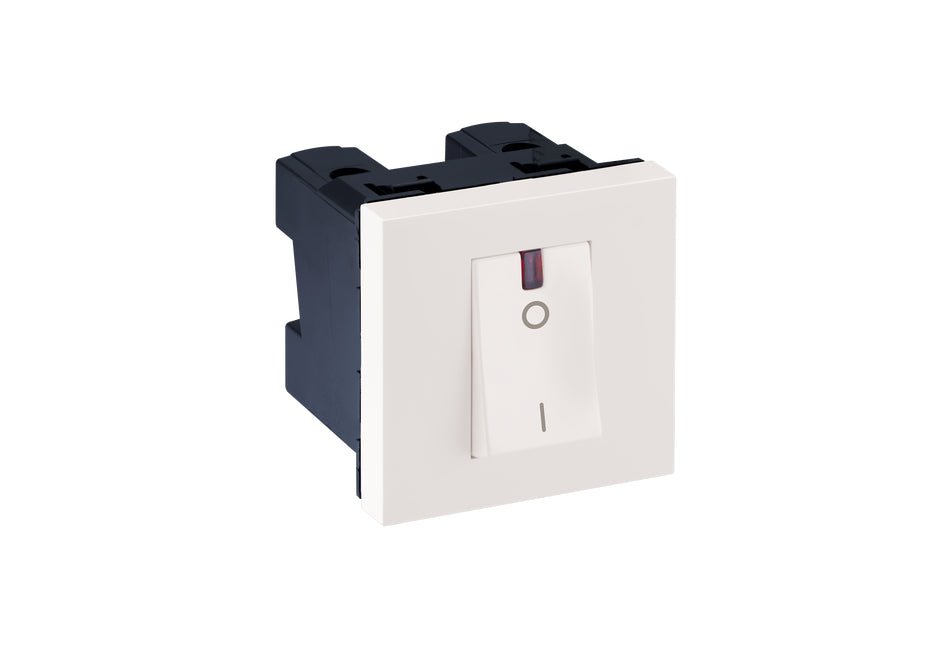

Legrand Myrius NextGen DP Switch, 32A provides complete electrical isolation for high-power appliances by simultaneously disconnecting both the live and neutral conductors. The integrated indicator light provides instant visual confirmation of the switch status, enhancing safety and convenience.
Rated at 32 amperes, this double pole switch is built for the most demanding residential and commercial applications. The robust construction ensures reliable performance under heavy loads, while the 2-module design integrates seamlessly into your Myrius NextGen modular electrical system.
Technical Specifications (Quick Reference)
Specification
Details
Brand
Legrand Myrius NextGen
Current Rating
32 Ampere
Voltage
240V AC
Switch Type
Double Pole (DP) with Indicator
Module Size
2 Module
Maximum Load
7680W at 240V
Recommended Applications
Air Conditioners: Safe isolation switch for split and window ACs up to 2 tons
Electric Water Heaters: Complete disconnection for geysers and instant water heaters
Kitchen Equipment: Control for electric ovens, induction cooktops, and commercial kitchen appliances
Washing Machines: Dedicated isolation switch for front-load and top-load washers
Commercial Machinery: Power control for shop equipment, display systems, and light machinery
Safety Isolation: Emergency disconnect for any high-power equipment requiring complete electrical isolation
Installation Guidelines
Safety Precautions: Disconnect main power supply and verify with a voltage tester. 32A circuits carry very high current – professional installation strongly recommended
Wire Connection: Use 4 sq mm copper wire minimum. Connect incoming live and neutral to input terminals, outgoing to load terminals. Ensure all connections are extremely tight
Indicator Wiring: Connect the indicator as per wiring diagram to illuminate when the switch is in ON position
Testing: After installation, test with actual load and monitor for any heating at terminals. Verify indicator functions correctly
