Jaquar Concealed Body for Single Lever Diverter

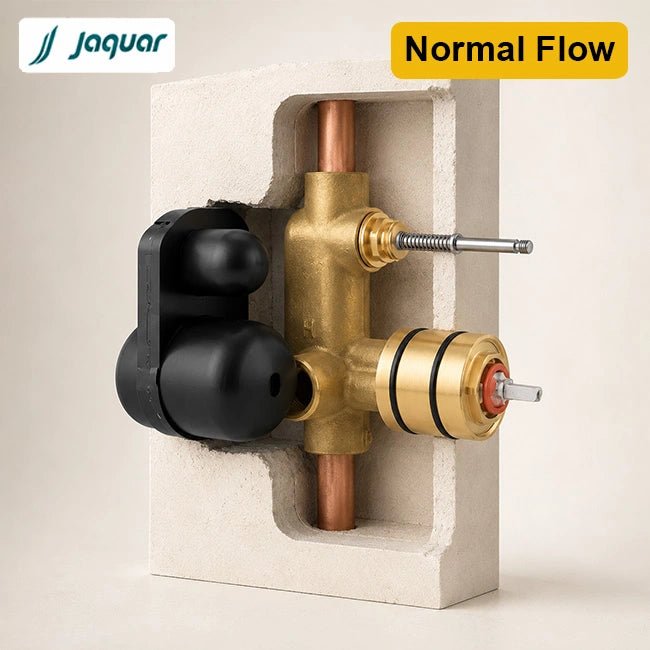

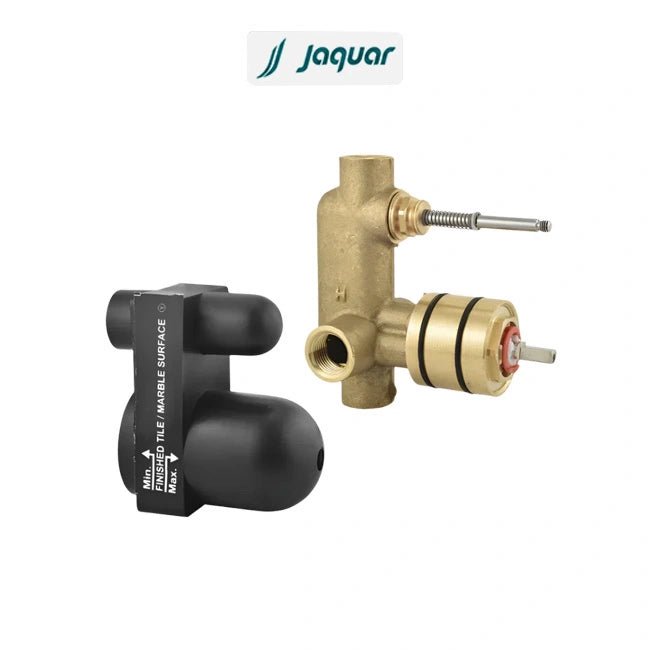

Jaquar Concealed Body for Single Lever Diverter is the in-wall valve mechanism that forms the functional core of a concealed single lever shower diverter system. Available in two variants ? Normal Flow (ALD-CHR-065M, 29.72 LPM @ 3 bar) and High Flow (ALD-CHR-079N, 48.94 LPM @ 3 bar) ? the concealed body is installed inside the wall cavity during rough plumbing stage, before tiling and wall finishing, and is subsequently fitted with a separately purchased exposed parts kit that forms the visible trim on the finished wall. The kit includes the concealed body, button assembly for diverter control, and cartridge sleeve ? but not the exposed parts kit, which is selected independently to match the bathroom’s design series.
The concealed body uses a precision ceramic cartridge ? 40mm for the Normal Flow variant and 47mm for the High Flow ? providing smooth, reliable temperature and flow control with long-term leak resistance. Ceramic cartridges significantly outlast rubber washer valves and maintain consistent operation across thousands of cycles without degradation. The Normal Flow variant suits standard residential single-head shower installations and apartments; the High Flow variant is designed for luxury multi-head shower systems, spa showers, and hotel bathrooms where higher volume throughput is required. Both variants are compatible with the full range of Jaquar single lever diverter exposed parts kits, giving complete design flexibility in finish and aesthetic series selection.

Key Features

Two Flow Variants ? Normal & High Flow: Choose 29.72 LPM for standard residential showers or 48.94 LPM for luxury multi-head systems ? flow rate matched to the complexity and volume demand of the shower installation.

Precision Ceramic Cartridge: 40mm (Normal) and 47mm (High Flow) ceramic disc cartridges provide smooth, precise flow and temperature control with long service life and minimal maintenance compared to rubber washer alternatives.

Clean Concealed In-Wall Installation: The entire valve mechanism is hidden behind the wall surface ? only the exposed parts kit is visible on the finished wall, creating a minimal, uncluttered bathroom aesthetic.

Button Assembly Included: Integrated diverter button mechanism for switching water flow between shower outlets is included in the kit ? provides precise, tactile diverter control.

Universal Exposed Parts Compatibility: Works with all Jaquar single lever diverter exposed parts kits ? allows the bathroom design series (Florentine, Continental, Allied, etc.) to be selected independently of the concealed body.

Technical Specifications

Technical Specifications (Quick Reference)

Specification
Details

Brand & Series
Jaquar Allied Products Professional Series

Product Type
Concealed Body for Single Lever Diverter

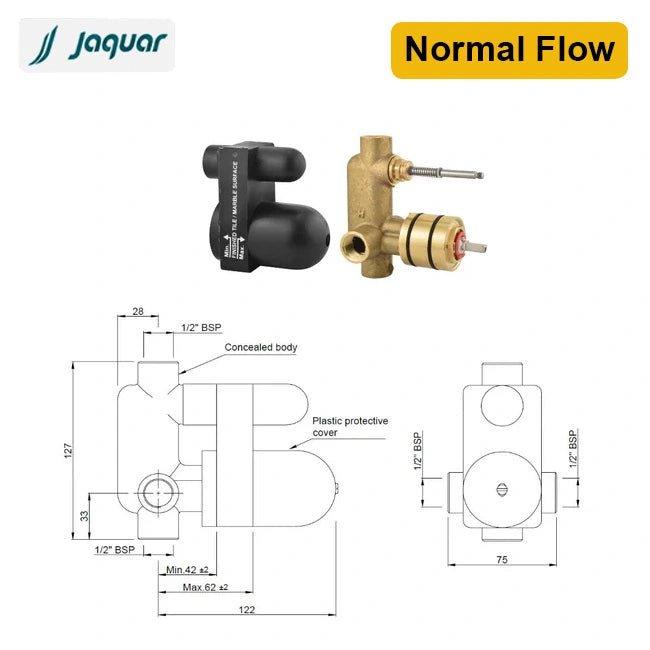

Normal Flow Code
ALD-CHR-065M ? 29.72 LPM @ 3 bar

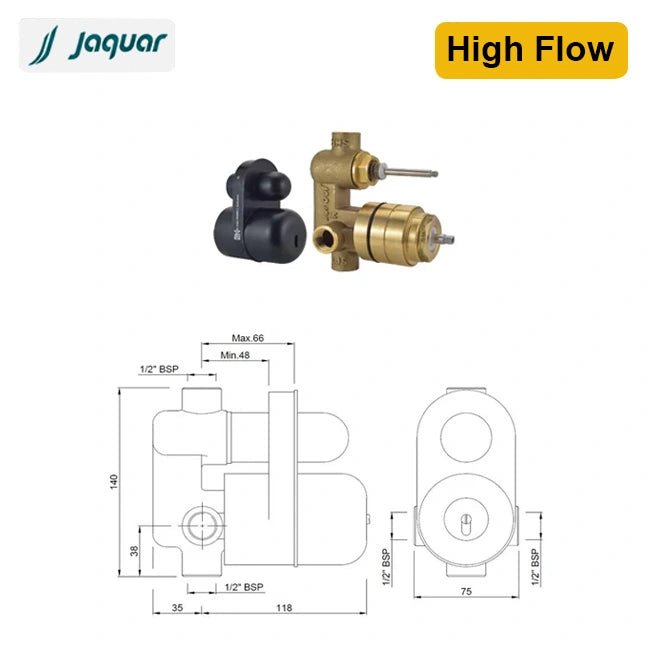

High Flow Code
ALD-CHR-079N ? 48.94 LPM @ 3 bar

Cartridge Size
40mm ceramic (Normal) / 47mm ceramic (High Flow)

Pressure Range
0.5?8 bar (Normal) / 1.0?8 bar (High Flow)

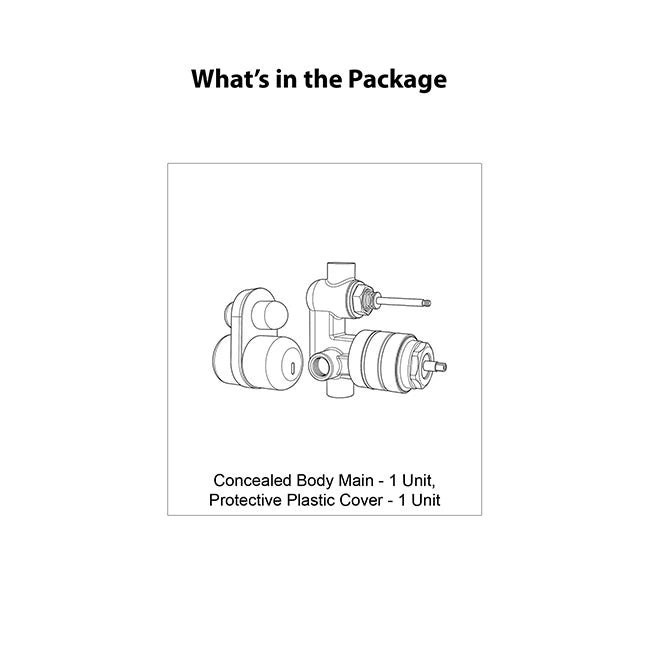

Kit Contents
Concealed body + button assembly + cartridge sleeve

Exposed Parts Kit
Not included ? purchase separately

Installation Type
Concealed in-wall, rough plumbing stage

Warranty
Jaquar Allied Series manufacturer warranty

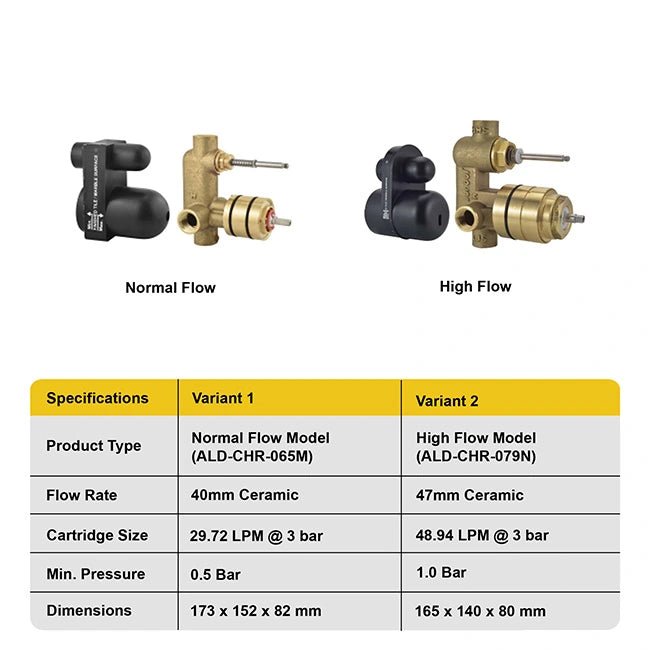

Normal Flow vs High Flow ? Which to Choose

Factor
Normal Flow (065M)
High Flow (079N)

Flow Rate
29.72 LPM @ 3 bar
48.94 LPM @ 3 bar

Cartridge
40mm ceramic
47mm ceramic

Min. Pressure
0.5 bar
1.0 bar

Best For
Standard single-head residential showers, apartments
Luxury multi-head systems, hotels, spa bathrooms

Installation Guidelines

Step-by-Step Installation

Plan the wall cavity position during rough plumbing stage ? determine the correct height and alignment for the concealed body before any wall construction begins.
Mount the concealed body securely within the wall cavity, connecting hot and cold supply lines with appropriate sealing at all joints.
Pressure test the system to 8 bar to verify leak-free operation at all connections before closing the wall.
Install the ceramic cartridge with correct orientation and sealing within the cartridge sleeve.
Set up the button assembly for diverter control and test switching operation between outlets.

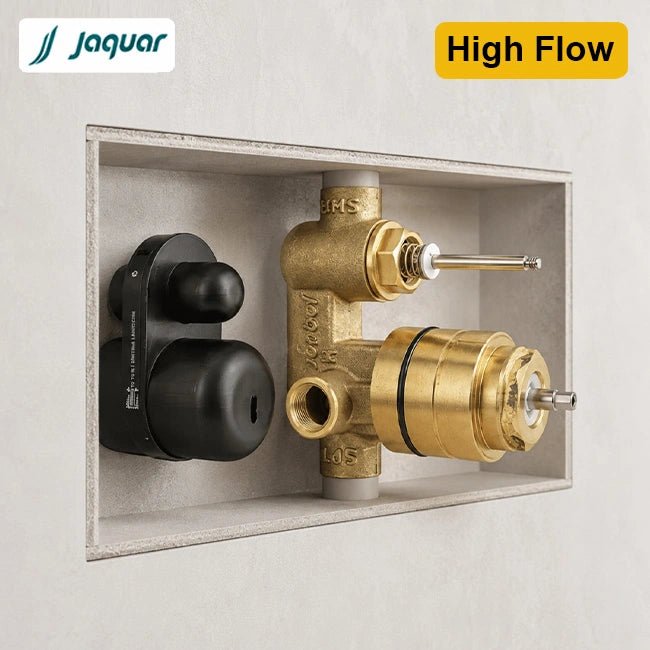

Complete wall construction (tiling, plastering) around the concealed body, ensuring the front access point remains unobstructed for future maintenance and exposed parts installation.
After wall finishing is complete, fit the chosen Jaquar exposed parts kit over the concealed body for the final visible trim installation.

Recommended Applications

Where the Jaquar Concealed Diverter Body fits best

Luxury Residential Bathrooms: High Flow variant supports multi-head shower systems with overhead rain showers, body jets, and handheld heads operating simultaneously ? concealed installation delivers the clean, wall-flush aesthetic expected in premium master bathrooms.

Urban Apartments: Normal Flow variant suits standard single-head shower installations ? space-efficient concealed design maximises usable bathroom area versus surface-mounted diverter alternatives.

Hotel & Resort Bathrooms: High Flow variant meets the volume and reliability demands of guest bathroom shower systems with consistent performance through heavy daily use cycles.

Spa & Wellness Facilities: High Flow ceramic cartridge technology handles continuous high-volume operation in spa shower rooms and wellness centres with commercial-grade durability.

New Construction & Builder Projects: Concealed body is specified at rough plumbing stage ? Normal or High Flow selected based on unit type, with exposed parts kit chosen at fit-out stage to match the interior design series.

Bathroom Renovation: Replacing an existing concealed diverter body without disturbing the exposed trim ? the Jaquar concealed body’s universal compatibility with exposed parts kits allows design flexibility during the upgrade.
