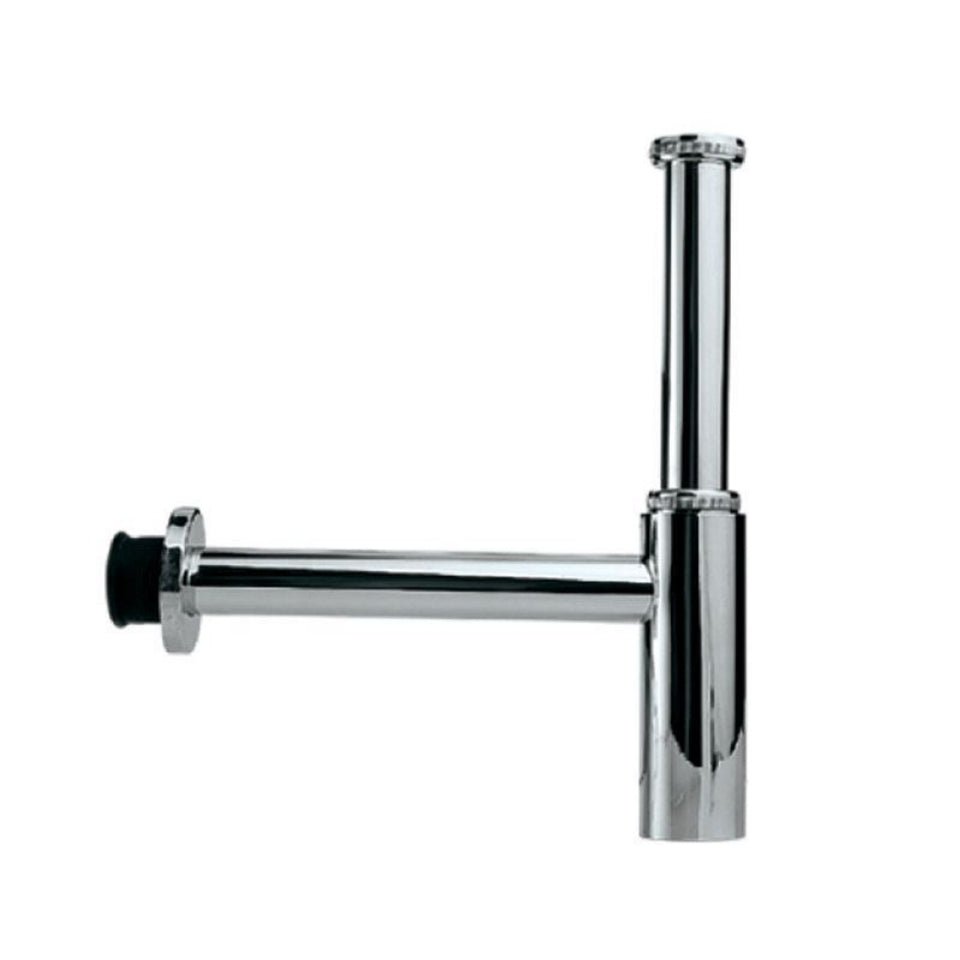

Jaquar Bottle Trap, ALD-CHR-769L300X190

Jaquar Bottle Trap 32mm (Product Code: ALD-CHR-769L300X190) is a professional-grade bathroom waste trap from Jaquar’s Allied plumbing series, engineered to deliver reliable drainage and superior sewer gas protection under bathroom basins and vanity units. Its internal partition design maintains a consistent water seal that blocks odour backflow from the drainage system ? a critical function that standard P-traps and S-traps often fail to sustain when water evaporates during periods of low use. The complete kit includes the bottle trap body, a 300mm and a 190mm wall connection pipe, a chrome wall flange, and all sealing hardware ? everything required for a professional installation in a single box.
Constructed from IS standard brass with a Nickel-Chrome plated finish, the Jaquar Bottle Trap is built to withstand the persistent moisture, cleaning chemicals, and mechanical stress of daily bathroom use without corroding, staining, or degrading in appearance. The removable bottle body provides direct access to the trap interior for cleaning and debris removal ? eliminating the need to disassemble the full waste assembly for routine maintenance. At 32mm, it is universally compatible with countertop, under-mount, and pedestal basins across residential and commercial installations.

Key Features

Internal Partition Odour Protection: Advanced internal partition creates a deep, reliable water seal that prevents sewer gas and odours from entering the bathroom ? more effective than basic trap designs where the seal can evaporate or siphon away.

Complete Installation Kit: Ships with both 300mm (thick wall) and 190mm (standard wall) connection pipes plus a chrome wall flange ? covering the full range of typical Indian bathroom wall depths without requiring additional parts.

IS Standard Brass Construction: Bureau of Indian Standards compliant brass body ensures material quality, thread accuracy, and durability appropriate for both residential and commercial plumbing installations.

Premium Chrome Finish: Nickel-Chrome plating delivers a mirror-like appearance that complements premium bathroom fixtures while resisting corrosion, tarnishing, and staining from cleaning agents and water minerals.

Removable Bottle for Easy Maintenance: The bottle body unscrews for direct access to the trap interior ? allowing thorough cleaning and hair/debris removal without disturbing the wall pipe connections.

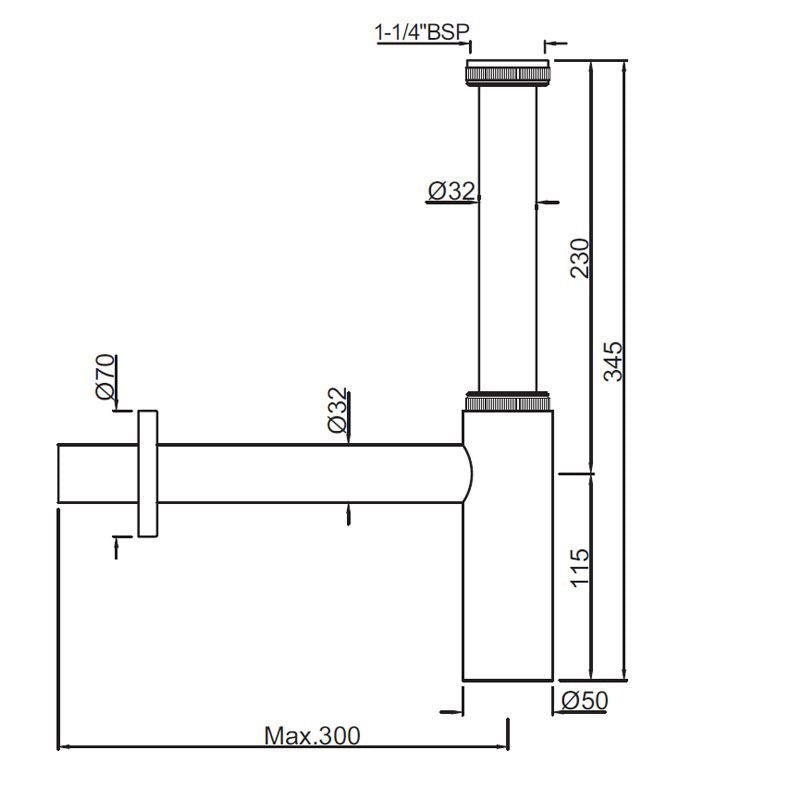

Technical Specifications

Technical Specifications (Quick Reference)

Specification
Details

Brand & Series
Jaquar Allied Professional Plumbing Series

Product Code
ALD-CHR-769L300X190

Trap Size
32mm

Wall Pipe Lengths
300mm and 190mm (both included)

Material
IS standard brass

Finish
Nickel-Chrome plated, mirror finish

Minimum Under-Basin Clearance
140mm vertical clearance required

Maintenance Clearance
200mm horizontal clearance recommended

Compliance
IS standard materials; National Building Code plumbing compliant

Warranty
Jaquar Allied Series manufacturer warranty

What’s in the Box

Complete installation kit ? no additional parts required for standard installations

Bottle Trap Body: 32mm chrome-finished brass trap with internal partition and removable bottle access.

300mm Wall Connection Pipe: For thick-wall or extended-reach installations where the sewer inlet is set deeper into the wall.

190mm Wall Connection Pipe: For standard-depth wall installations ? the more commonly used pipe in typical Indian bathroom construction.

Chrome Wall Flange: Decorative and functional cover plate that conceals the wall opening and provides a clean, finished appearance at the pipe entry point.

Sealing Hardware: High-quality gaskets, washers, nuts, and fittings for leak-proof threaded connections throughout the assembly.

Installation Guidelines

Step-by-Step Installation

Ensure the basin waste outlet is clean and correctly sized for a 32mm connection.
Select the appropriate wall pipe length ? 300mm for thick walls, 190mm for standard construction ? and install through the wall to the sewer connection point.
Secure the chrome wall flange over the pipe at the wall surface, ensuring proper alignment and a tight seal.
Connect the bottle trap body to the basin waste outlet using the provided gaskets and threaded fittings.
Join the bottle trap outlet to the wall pipe with a secure threaded connection, ensuring all gaskets are correctly seated.
Fill the trap with water and verify the water seal is functioning correctly before closing up the under-basin space.
Test all connections under normal water flow and check for leaks at every joint.
Confirm proper alignment, flush appearance against the wall flange, and accessible bottle removal for future maintenance.

Recommended Applications

Where the Jaquar Bottle Trap 32mm fits best

Luxury Residential Bathrooms: Chrome finish complements premium basin fixtures and vanity units where under-sink aesthetics matter.

Modern Apartments & Compact Bathrooms: Space-efficient bottle trap design fits confined under-basin cavities where P-traps are too bulky.

Hotel & Hospitality Washrooms: Reliable odour protection and easy bottle-access maintenance suit high-frequency guest bathroom use.

Commercial & Office Washrooms: Professional chrome appearance and durable brass construction handle heavy daily usage.

Healthcare & Institutional Facilities: Superior water seal odour control meets hygiene requirements for clinical and institutional environments.

Retrofit & Replacement: 32mm standard size fits existing basin waste outlets as a direct replacement for worn or leaking bottle traps without modification.
