Jaquar Hand Shower Health Faucet (Model Code: ALD-CHR-573) is a complete personal hygiene kit from Jaquar’s Allied plumbing series, comprising an ergonomic trigger-control handset, a 1-metre chrome flexible hose, and a wall-mounted bracket ? everything needed for a professional health faucet installation in a single box. With a rated flow of 11.65 LPM at 3 bar and an operating range of 1.0?3.0 bar, it delivers effective cleaning pressure across the full spectrum of Indian residential water supply conditions, including low-pressure apartments and overhead tank-fed systems where pressure rarely exceeds 1.5 bar.
Built from IS standard brass with ABS handset components and finished to Jaquar’s professional chrome specification ? 10.0 micron nickel base with 0.3 micron chrome top coat, validated to 500+ hours of salt spray corrosion resistance ? the ALD-CHR-573 is engineered for long-term durability in the persistent humidity and hard water conditions of Indian bathrooms. The trigger-control mechanism allows precise, one-handed flow regulation, and the standard 1/2″ connection fits all common Indian angle valves without adaptors. For users in water-scarce areas or those mindful of consumption, the kit is also available with flow regulators at 6.0, 8.0, or 3.8 LPM to reduce water use without sacrificing hygiene performance.
Key Features
11.65 LPM High-Performance Flow: Above-average flow rate (standard health faucets typically deliver 8?10 LPM) ensures effective personal hygiene cleaning pressure even at lower supply pressures.
Wide Pressure Compatibility: Operates reliably from 1.0 to 3.0 bar ? covers low-pressure overhead tank systems, mid-pressure municipal supply, and high-pressure booster pump installations without adjustment.
Complete Ready-to-Install Kit: Handset, 1m chrome hose, wall hook bracket, and all connection hardware included ? no additional parts required for standard bathroom installations.
500+ Hour Salt Spray Tested Chrome: Professional-grade finish with 10.0 micron nickel base and 0.3 micron chrome ? more corrosion-resistant than standard chrome-plated health faucets and validated to last in high-humidity bathroom environments.
Flow Regulator Options: Available with GA-6.0, GB-8.0, and GD-3.8 LPM flow regulators for water conservation ? useful for apartments with metered supply or households focused on reducing water consumption.
Technical Specifications
Technical Specifications (Quick Reference)
Specification
Details
Brand & Series
Jaquar Allied Professional Bathroom Hygiene Series
Model Code
ALD-CHR-573
Flow Rate
11.65 LPM at 3 bar
Operating Pressure Range
1.0?3.0 bar
Hose Length & Diameter
1 metre, 8mm chrome flexible hose
Connection Size
Standard 1/2″ (fits all Indian angle valves)
Body Material
IS standard brass with ABS handset components
Chrome Finish
10.0 micron nickel + 0.3 micron chrome, 500+ hour salt spray tested
Flow Regulator Options
GA-6.0 LPM / GB-8.0 LPM / GD-3.8 LPM (available separately)
Material & Finish
Brass + ABS, Nickel-Chrome mirror finish
Warranty
Jaquar Allied Series manufacturer warranty
Performance vs Standard Health Faucets
Factor
Jaquar ALD-CHR-573
Standard Health Faucet
Flow Rate
11.65 LPM @ 3 bar
8?10 LPM typical
Pressure Range
1.0?3.0 bar
1.5?2.5 bar typical
Chrome Finish Testing
500+ hour salt spray validated
Basic chrome, untested
Handset Control
Professional trigger mechanism
Basic squeeze or thumb valve
Material Standard
IS standard brass + ABS
Mixed/unspecified materials

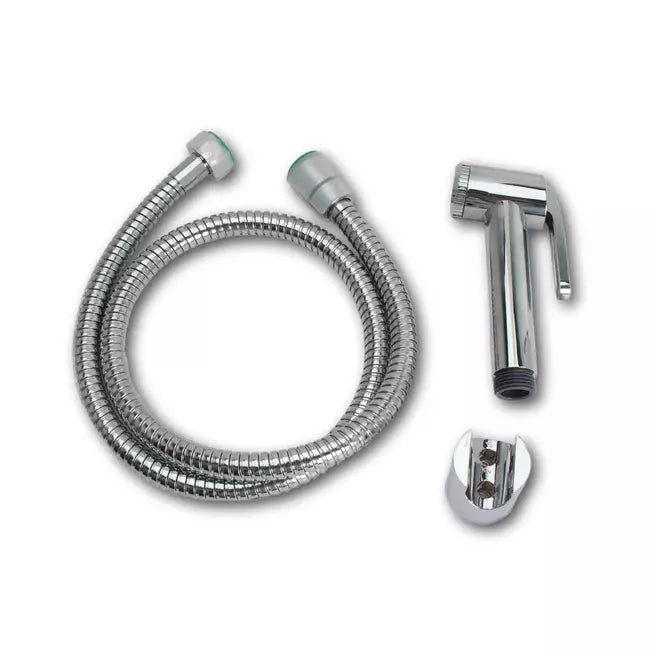

What’s in the Box
Complete kit ? no additional parts required for standard installation

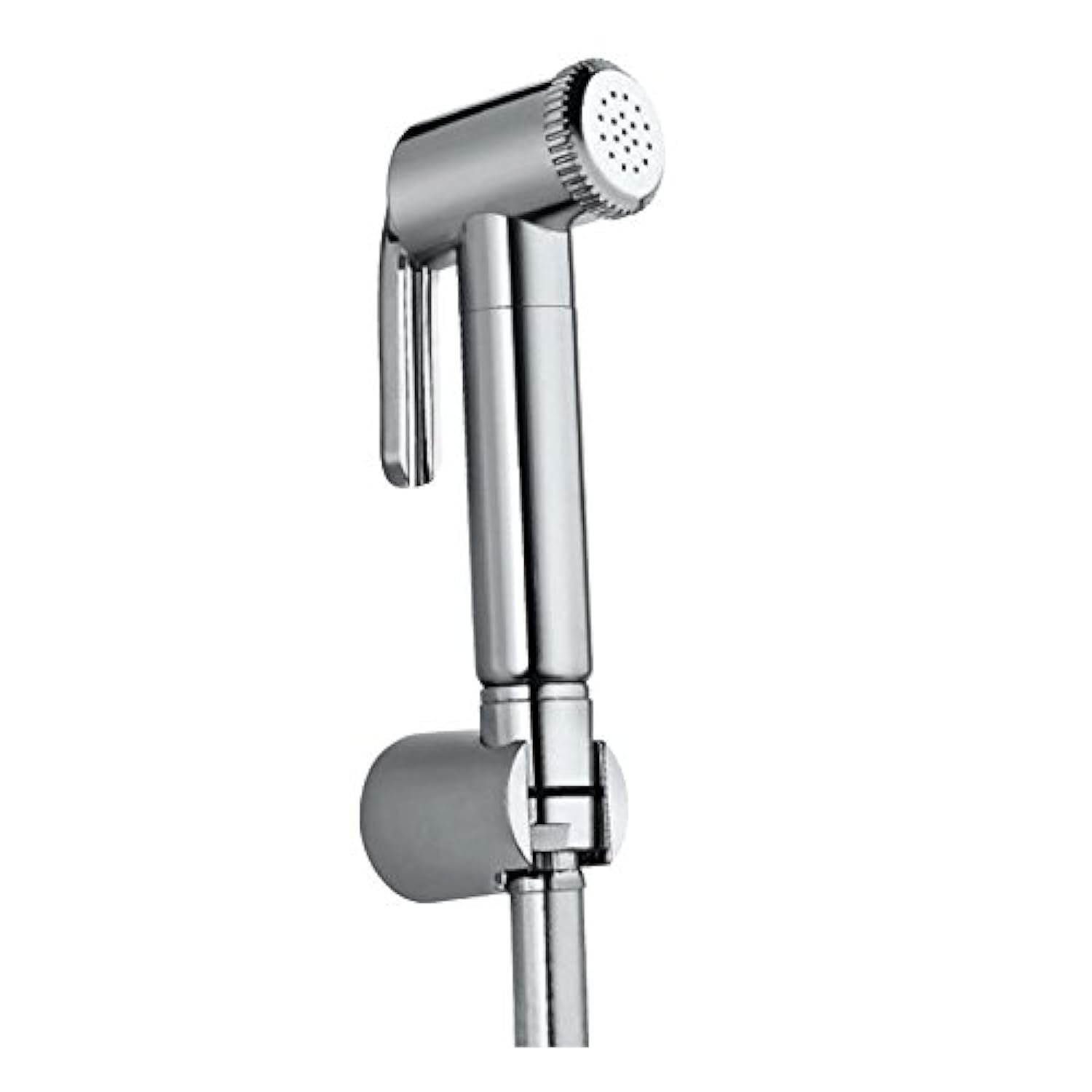

Ergonomic Handset: Chrome-plated ABS body with trigger control mechanism for precise, one-handed flow regulation.
1m Chrome Flexible Hose: 8mm diameter chrome-plated flexible tube with corrosion-resistant construction and swivel end fittings.
Wall Hook Bracket: Chrome-finished wall mounting bracket for handset storage when not in use.
Connection Hardware: Standard 1/2″ inlet fittings compatible with all Indian angle valves and stop cocks.
Sealing Components: High-quality gaskets and washers for leak-proof threaded connections throughout the assembly.
Installation Guidelines
Step-by-Step Installation
Ensure a dedicated 1/2″ angle valve is installed near the toilet area for the health faucet connection ? if not already present, have a plumber fit one before installation.
Mount the wall hook bracket at a comfortable height for easy handset access and return ? typically 90?100cm from floor level beside the toilet.
Plan the hose routing from the angle valve to the mounting point, ensuring the hose lies naturally without kinks or sharp bends.
Connect the hose to the angle valve outlet using the provided 1/2″ fitting and gasket ? hand-tighten, then snug with a wrench without overtightening.
Attach the handset to the free end of the hose, ensuring the gasket is correctly seated in the coupling.
Turn on the angle valve and test flow rate and trigger operation ? check all connections for leaks under live pressure.
Hang the handset on the wall bracket and confirm secure, accessible storage position.
Recommended Applications
Where the Jaquar Health Faucet ALD-CHR-573 fits best
Residential Bathrooms: Standard personal hygiene use in family homes and apartments ? the most common application across India.
Hotel & Hospitality Bathrooms: Durable chrome finish and reliable trigger mechanism suit high-frequency guest use and daily housekeeping cleaning.
Healthcare & Clinical Facilities: Superior flow rate and easy-clean chrome surface support infection control and patient hygiene standards.
Commercial & Office Washrooms: Professional appearance and robust Allied series construction handle heavy daily usage in corporate environments.
Elderly & Accessibility Applications: Ergonomic trigger handset and flexible 1m hose provide comfortable reach and control for elderly users or those with limited mobility.
Low-Pressure Buildings: 1.0 bar minimum operating pressure makes it suitable for top-floor apartments and overhead tank-fed systems where pressure is limited.
