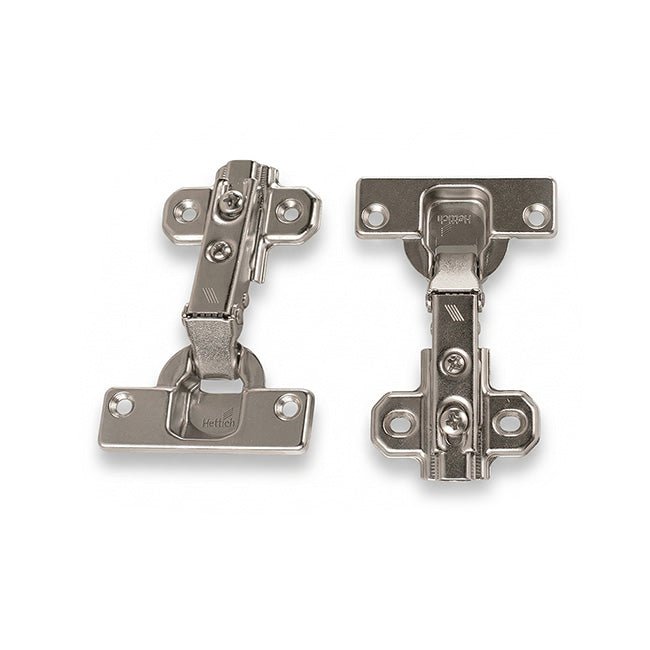

Hettich Slide On 2333 Regular Close Hinges are designed to bring Hettich quality and reliability to budget-conscious projects. Built with proven engineering and manufactured in India, Slide On 2333 hinges offer the ideal balance between performance, durability, and value for residential cabinetry.

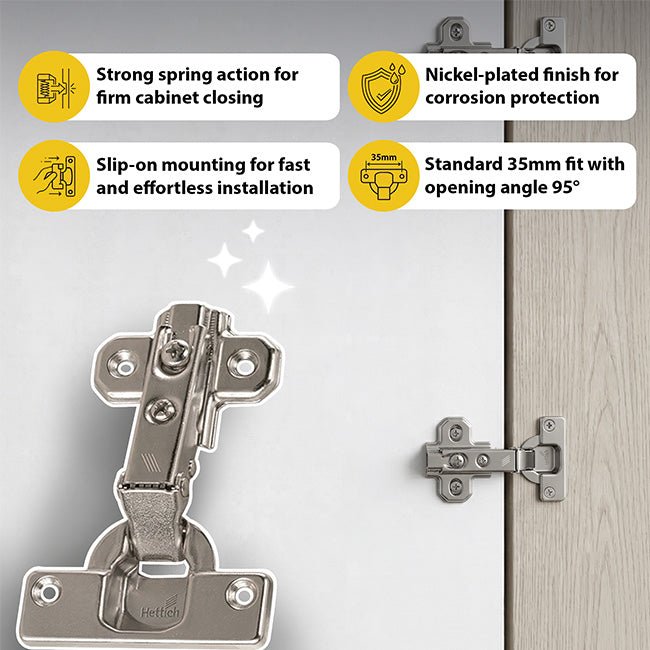

The regular close mechanism provides smooth door movement without soft-close, making these hinges perfect for applications where silent closing is not required. With a 95? opening angle and precise 3-dimensional adjustment, these hinges are widely used by carpenters and modular kitchen installers for cost-effective residential interiors.

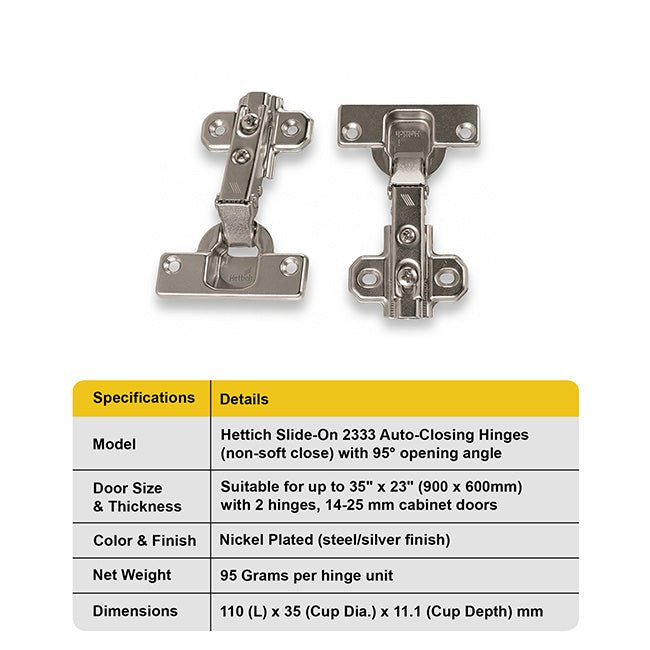

Technical Specifications (Quick Reference)
Specification
Details
Hinge Type
Concealed regular close hinge
Cup Diameter
35 mm (European standard)
Cup Depth
11.5 mm
Door Thickness
15 ? 24 mm
Opening Angle
95?
Adjustment
3D adjustment capability
Material & Finish
Nickel-plated steel
Warranty
10 years (functional)
Crank Options Explained

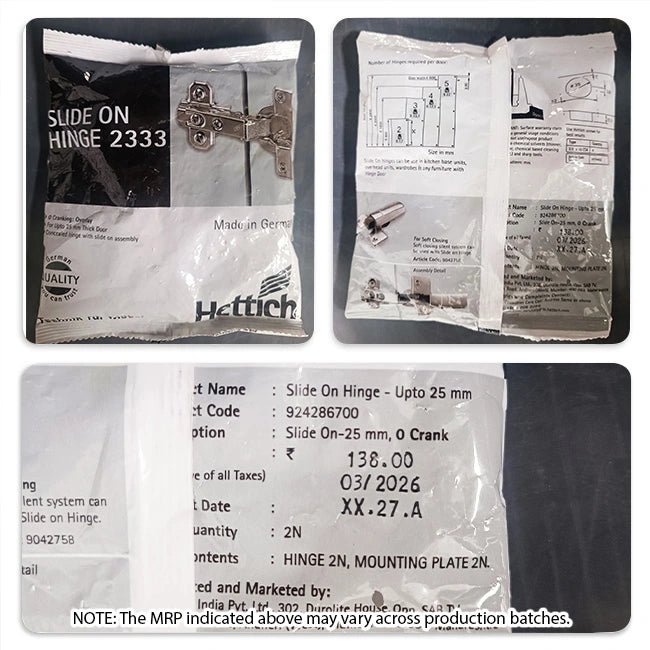

0 Crank (Full Overlay): Door fully covers the cabinet side panel ? most common in modular kitchens.

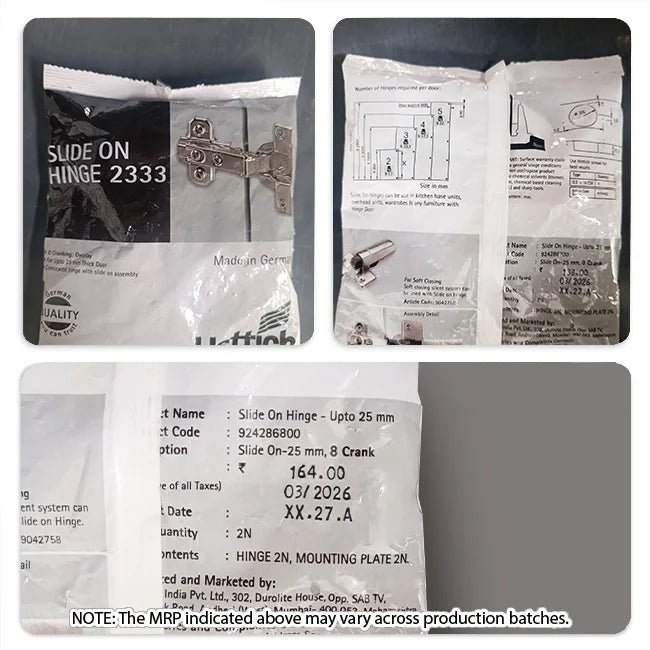

8 Crank (Half Overlay): Two doors share a common partition.

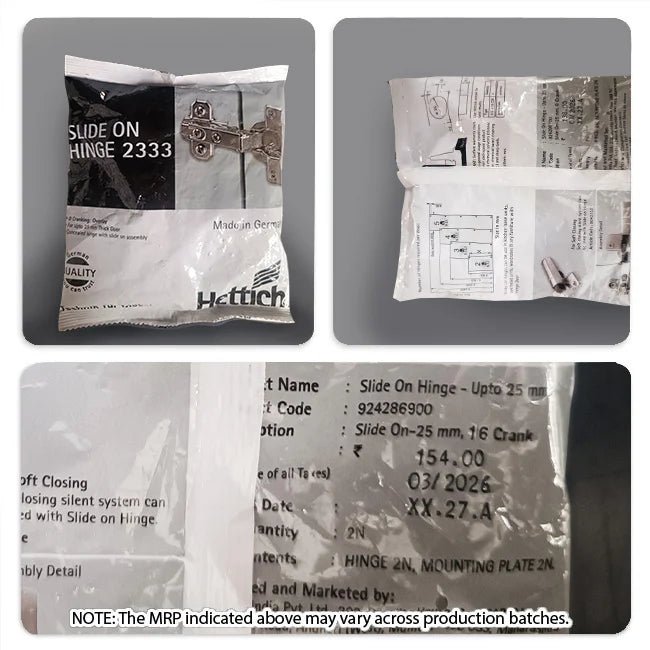

16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
Budget modular kitchen cabinets
Wardrobes and bedroom storage
Bathroom vanities
Rental property upgrades
TV units and display cabinets
Office and utility cupboards
Installation Guidelines
Drill a 35 mm cup hole with 11.5 mm depth.
Fix hinge cup to the door panel.
Mount base plate on cabinet side.
Clip hinge onto mounting plate.
Adjust overlay, depth, and height for perfect alignment.
