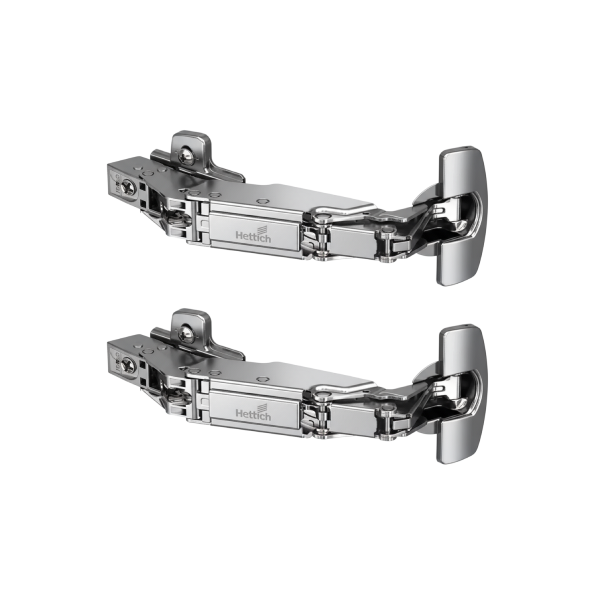

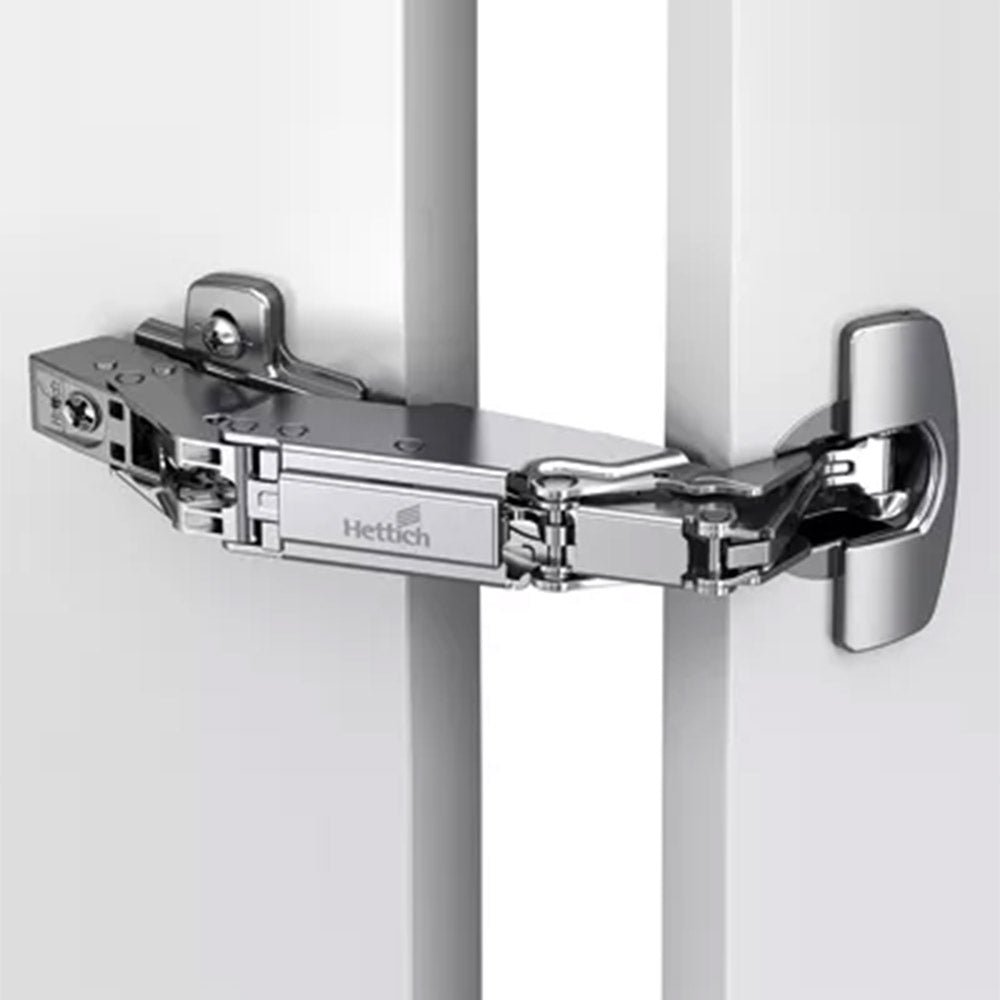

Hettich Sensys 8657i Corner 165? Hinges represent the pinnacle of corner cabinet hinge engineering. Designed specifically for corner applications, these premium hinges combine a 165? opening angle with zero protrusion design, ensuring doors open wide without interfering with adjacent cabinet doors or walls.
The integrated soft-close mechanism delivers silent, gentle closing even at extreme opening angles, while the Sensys premium construction ensures exceptional durability and flawless performance. Perfect for high-end modular kitchens where corner cabinets require maximum accessibility with professional-grade operation.
Technical Specifications (Quick Reference)
Specification
Details
Hinge Type
Corner 165? zero protrusion soft-close
Cup Diameter
35 mm (European standard)
Opening Angle
165?
Crank Type
0 Crank (Full overlay)
Design Feature
Zero protrusion for corner cabinets
Adjustment
3D adjustment with tool-free options
Series
Sensys (Premium range)
Recommended Applications
Corner Kitchen Cabinets: L-shaped and corner base units
Bi-Fold Door Systems: Folding door configurations
Premium Modular Kitchens: High-end corner solutions
Luxury Wardrobes: Corner closet applications
Commercial Kitchens: Professional corner storage
Special Installations: Custom corner configurations
Installation Guidelines
Corner Cabinet Preparation: Ensure proper clearance for 165? opening.
Cup Installation: Drill 35mm cup hole and mount hinge.
Base Plate Mounting: Install on cabinet side with proper positioning.
Hinge Attachment: Clip hinge onto mounting plate.
3D Adjustment: Fine-tune overlay, depth, and height for perfect alignment.
Important: Zero protrusion design ensures door doesn’t interfere with adjacent surfaces when opened.
