Hettich Sensys 8645i Soft Close Hinges represent premium German engineering designed for high-end residential and commercial applications. Built with Hettich’s advanced technology, Sensys hinges deliver silent operation, exceptional durability, and professional-grade alignment that exceeds standard hinge performance.
The integrated soft-close system automatically engages during closing, preventing door slams and reducing stress on cabinet panels. With a 110? opening angle and precise 3-dimensional adjustment, these hinges are the choice of premium kitchen manufacturers and luxury interior designers worldwide.

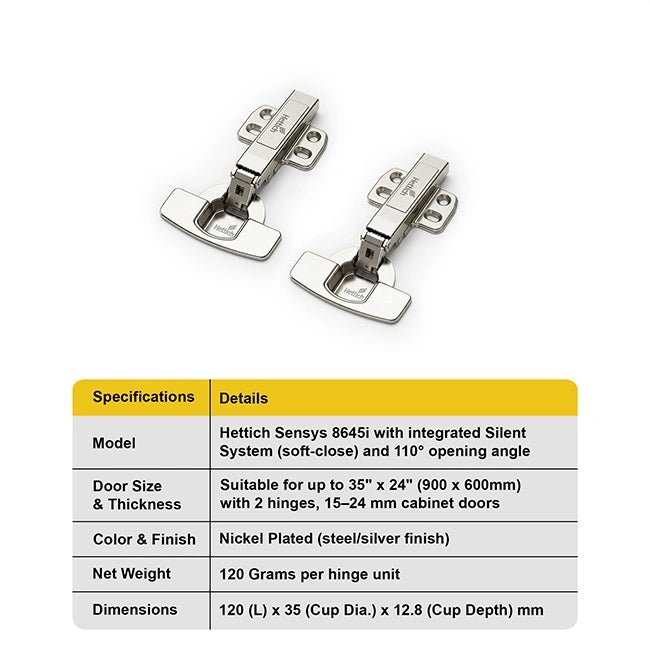

Technical Specifications (Quick Reference)
Specification
Details
Hinge Type
Premium concealed soft-close hinge
Cup Diameter
35 mm (European standard)
Door Thickness
15 ? 24 mm
Opening Angle
110?
Adjustment
3D adjustment with tool-free options
Material & Finish
Nickel-plated steel
Series
Sensys (Premium range)
Crank Options Explained
0 Crank (Full Overlay): Door fully covers the cabinet side panel ? most common in modular kitchens.

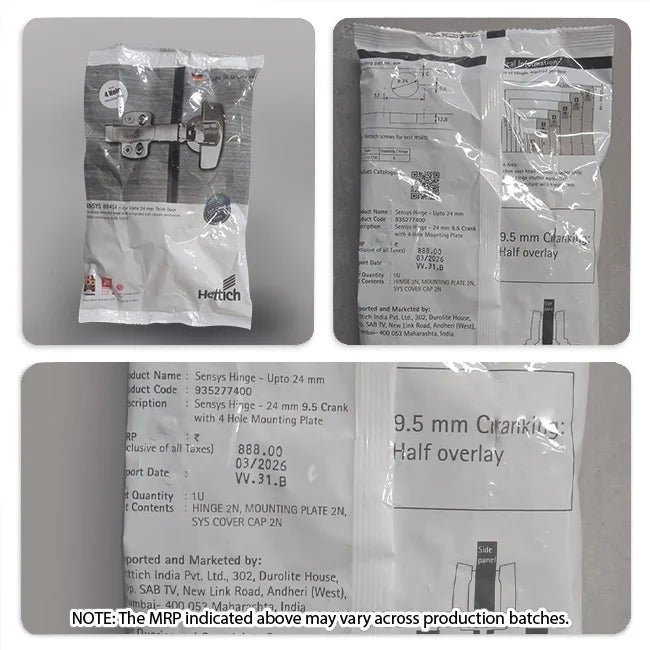

8/9.5 Crank (Half Overlay): Two doors share a common partition.

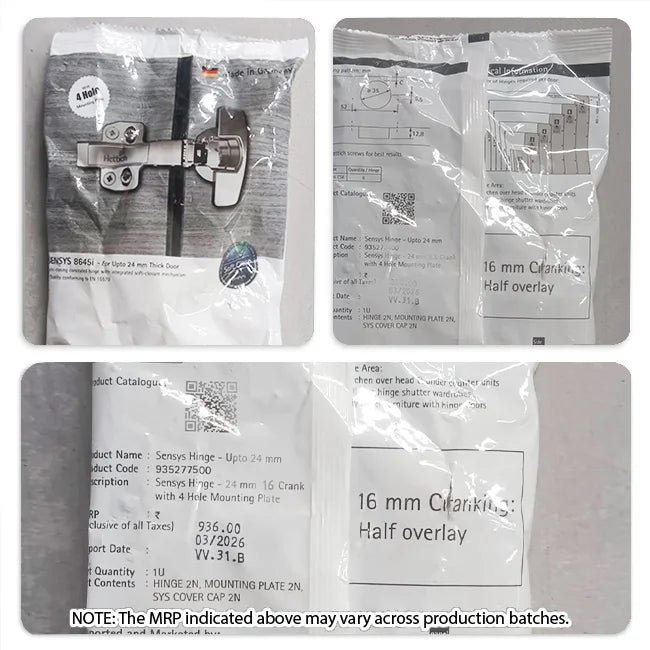

16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
Premium modular kitchen cabinets
Luxury wardrobes and walk-in closets
High-end bathroom vanities
Designer TV units and display cabinets
Commercial office furniture
Hospitality and retail interiors
Installation Guidelines
Drill a 35 mm cup hole with appropriate depth.
Fix hinge cup to the door panel.
Mount base plate on cabinet side.
Clip hinge onto mounting plate.
Adjust overlay, depth, and height for perfect alignment using 3D adjustment.
