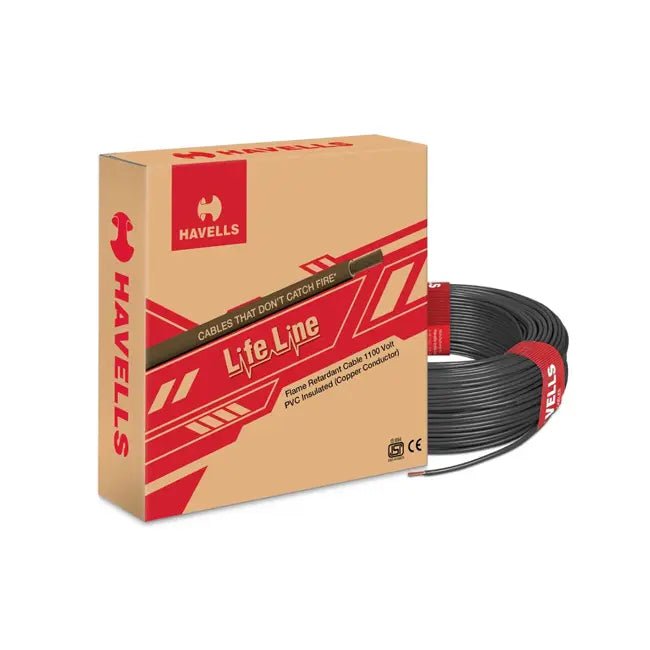

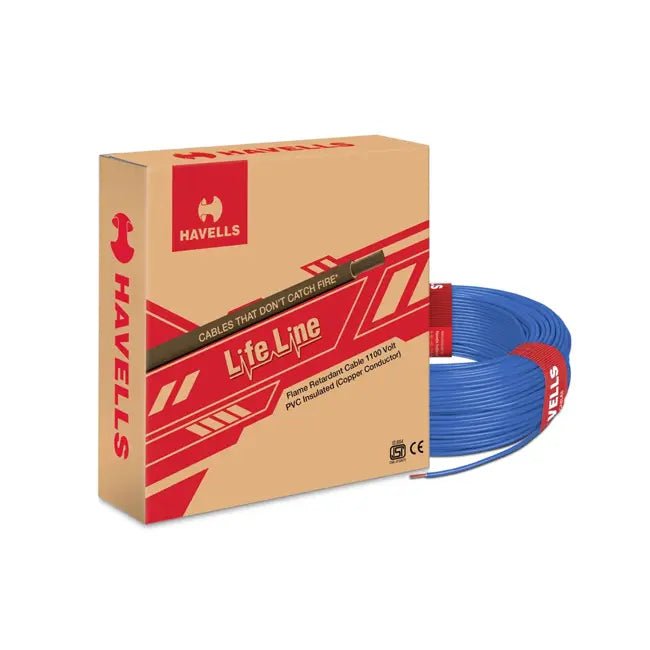

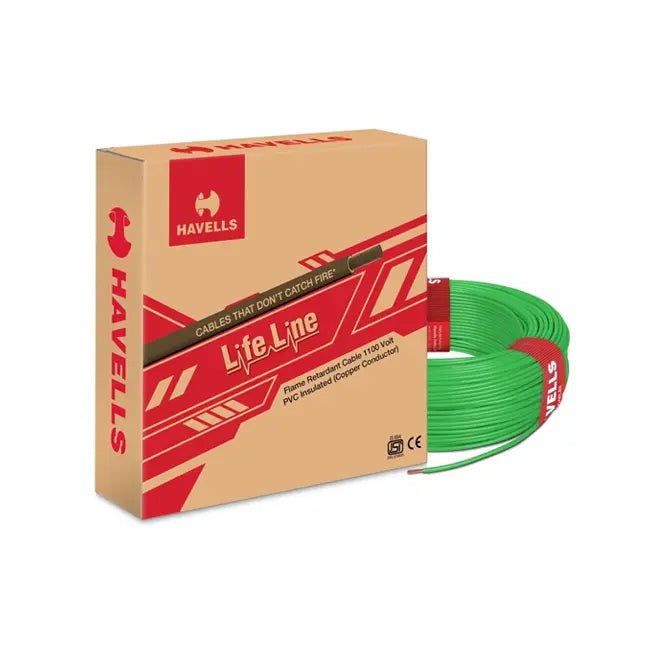

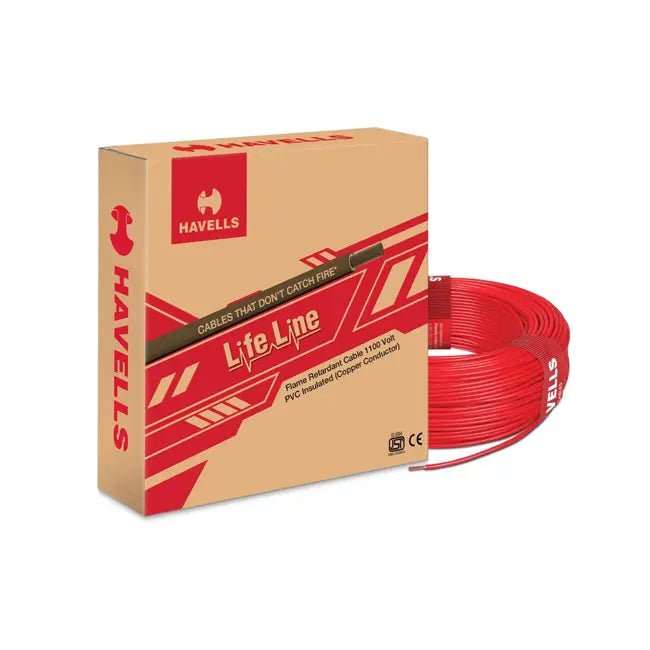

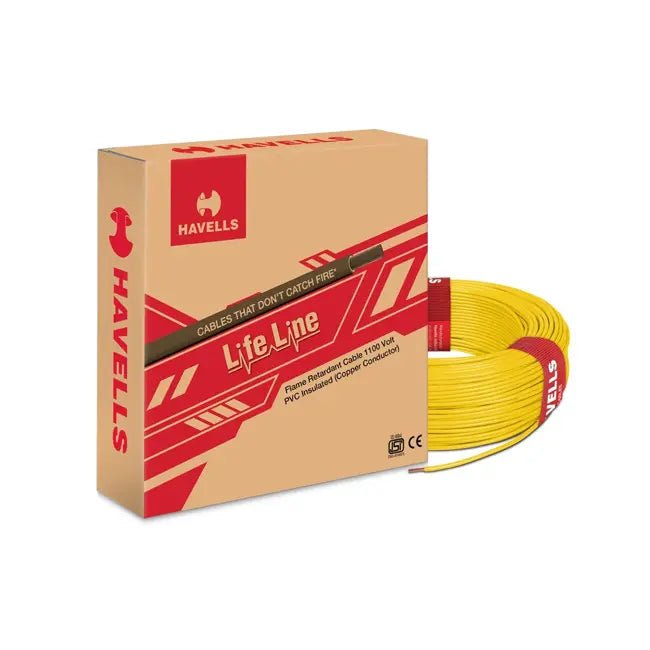

Havells Lifeline FR Wire, 180m

Havells Lifeline FR Single-Core Flexible Cable is a flame retardant PVC insulated copper wire for low-voltage domestic and light industrial wiring up to 1.1 kV. Built with 99.95%+ pure ETP-grade annealed copper delivering 101% IACS conductivity, it minimises resistance, reduces heat generation, and ensures efficient current delivery. The FR PVC insulation self-extinguishes on contact with a spark or short-circuit, preventing fire from travelling inside wall conduits. Available in five sizes from 1.0 to 6.0 sqmm, five colours for standard phase identification, and in 180-metre standard coils. Certified to IS:694.

Key Features

Flame retardant PVC insulation: Self-extinguishes on ignition – prevents fire propagation along wall conduits

99.95% pure ETP copper: Minimises internal resistance and reduces heat build-up during extended operation

101% IACS conductivity: Maximises current flow and cuts energy losses across the circuit

5 sizes: 1.0 to 6.0 sqmm – covers lighting, power outlets, AC lines, and main distribution feeds

Standard colour coding: Red/Blue/Yellow for live phases, Black for neutral, Green for earth

Thickness Selection Guide

Thickness
Recommended Application

1.0 sqmm
Small lighting strings, ambient exhaust fans, and doorbells

1.5 sqmm
Room lighting circuits, ceiling fans, and plug switches

2.5 sqmm
Kitchen appliances, entertainment hubs, and mid-range geysers

4.0 sqmm
Dedicated AC circuits, isolated terminal points, and distribution boards

6.0 sqmm
Heavy machinery, whole-home energy feeds, and solar array systems

Standard Phase Colour Identification

Red / Blue / Yellow: Live / Phase conductors in AC circuits

Black: Neutral return conductor

Green: Earth / Ground protective conductor

Technical Specifications

Technical Specifications (Quick Reference)

Specification
Details

Brand
Havells

Series
Lifeline FR

Conductor Material
99.95%+ Pure ETP Annealed Copper

Conductivity
101% IACS

Insulation
Flame Retardant (FR) PVC

Voltage Grade
Up to 1.1 kV (IS:694)

Core Type
Single Core – Flexible Multistrand

Standard Coil Length
180 metres

Certification
IS:694

Country of Origin
India
