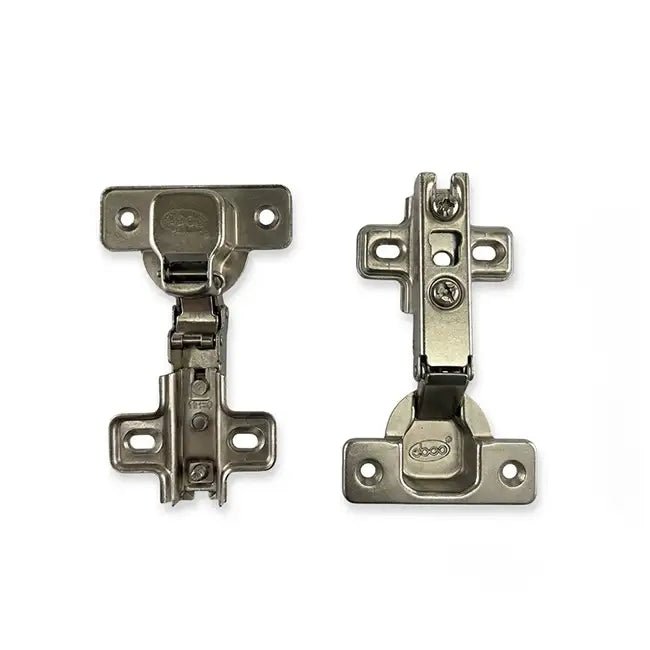

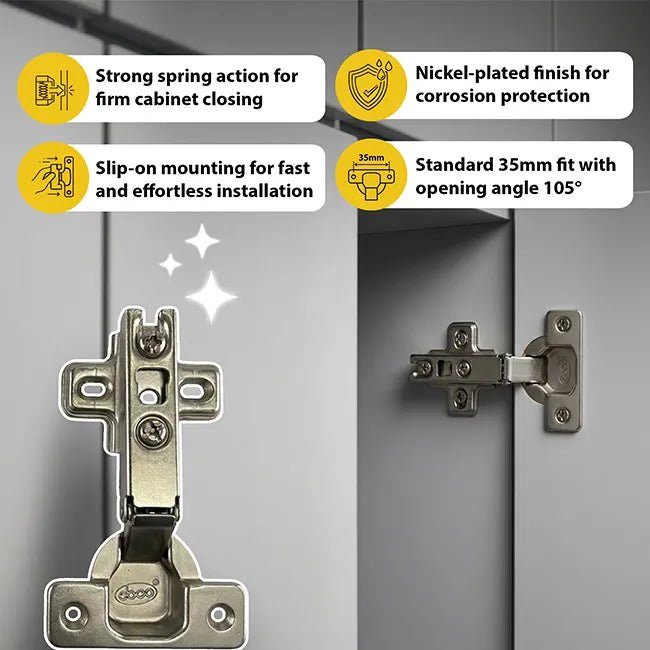

Ebco Slip On Hinge (Regular Close) delivers reliable cabinet door operation with standard European specifications at an economical price point. Designed for applications where regular close is sufficient, these concealed hinges provide smooth door movement and proper alignment without the added cost of soft-close mechanisms.
The 105? opening angle provides full cabinet access, while the nickel-plated steel finish ensures corrosion resistance suitable for Indian kitchen and bathroom conditions. With a standard 35mm cup size, these hinges are compatible with existing hinge holes, making upgrades and replacements straightforward.

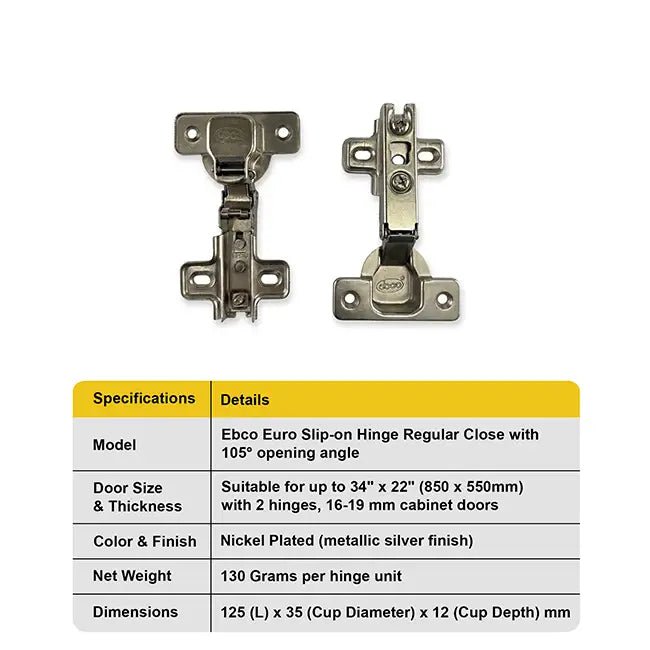

Technical Specifications (Quick Reference)
Specification
Details
Hinge Type
Concealed regular close hinge
Cup Diameter
35 mm (European standard)
Door Thickness
16 ? 19 mm
Opening Angle
105?
Material & Finish
Nickel-plated steel
Mechanism
Regular close (no soft-close)
Crank Options
0, 8, and 16 crank available
Crank Options Explained
0 Crank (Full Overlay): Door fully covers the cabinet side panel ? most common in modular kitchens.
8 Crank (Half Overlay): Two doors share a common partition.
16 Crank (Inset): Door sits flush inside the cabinet opening.
Recommended Applications
Budget kitchen cabinets
Wardrobe and bedroom storage
Bathroom vanities
Rental property upgrades
Utility and storage cupboards
DIY home improvement projects
Installation Guidelines
Drill a 35 mm cup hole at the appropriate depth.
Fix hinge cup to the door panel.
Mount base plate on cabinet side.
Slip hinge onto mounting plate.
Adjust door alignment as needed.
