Ebco Roll Top Pro – Vertical is a vertical roll-up door system for modular kitchen cabinets and appliance garages – the roll-up mechanism replaces conventional swing doors, allowing the door panel to roll upward into the cabinet top rather than swinging outward into the kitchen work area. This eliminates the swing clearance that a hinged door requires in front of the cabinet, making the Roll Top Pro the correct hardware choice for appliance garages, tall pantry cabinets, and storage units positioned in locations where an outward-swinging door would conflict with adjacent countertop edges, open drawers, or kitchen traffic flow. Available in 450mm, 600mm, and 900mm widths at a fixed height of 1300mm, and in seven premium finishes – the complete package includes overlay rails and cover profile for a professional, finished installation.
The seven finish options cover the full range of modern modular kitchen colour palettes: SL (Silver) and AT (Anthracite) for metallic contemporary kitchens; SF (Special Finish) for specialist aesthetic requirements; FG (Frozen Glass) – which features high-quality PVC slats with a translucent, frosted glass-like finish that allows diffused light to pass through the door while concealing cabinet contents – for premium interiors where a glass-look door is the design intent without the weight or fragility of actual glass; BL (Black) for dark, dramatic kitchen schemes; GW (Glossy White) for all-white or Scandinavian-style kitchens; and MC (Mocha) for warm-toned wood and earth-colour kitchen interiors. The overlay rails and cover profile included in the kit conceal the roll mechanism for a seamless, flush appearance when the door is in the closed position.
Key Features
Vertical Roll-Up Mechanism – No Swing Clearance Required: Door rolls upward into the cabinet top rather than swinging outward – eliminates the clearance zone in front of the cabinet that a hinged door requires, freeing up kitchen work area directly in front of the storage unit.
Seven Premium Finish Options: SL (Silver), SF (Special Finish), FG (Frozen Glass finish i.e., frosted translucent PVC material), BL (Black), GW (Glossy White), AT (Anthracite), and MC (Mocha) – covers every major modular kitchen colour palette from metallic contemporary to warm-toned traditional.

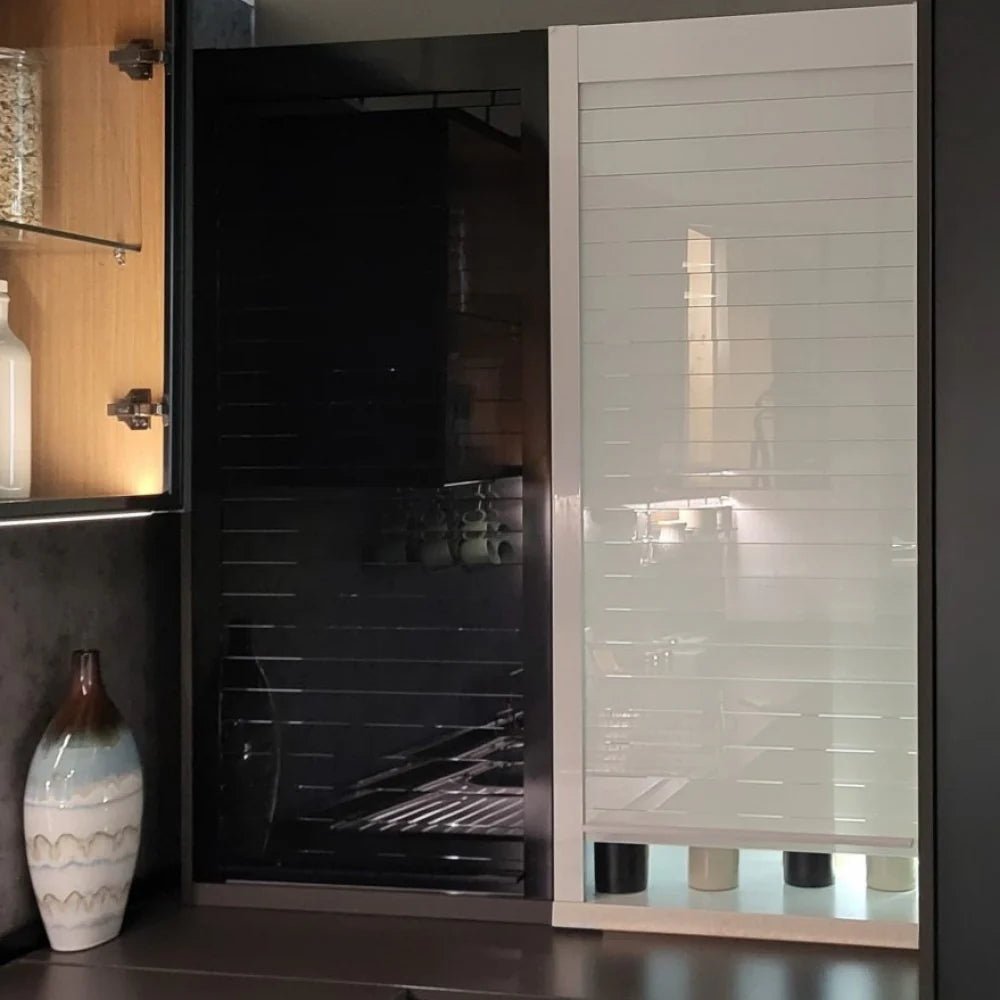

Frozen Glass (FG) – Frosted Translucent PVC Slats: The FG variant uses high-quality PVC slats with a translucent, frosted glass-like finish – diffuses light through the door surface while concealing cabinet contents, delivering a premium glass aesthetic without the weight, fragility, or cost of real glass panels.
Three Width Options – 450mm, 600mm, 900mm: Sized to match standard modular kitchen cabinet widths – 450mm for narrow appliance garages and filler units, 600mm for standard cabinet bays, and 900mm for wide pantry cabinets and large appliance storage zones.
Complete System – Overlay Rails and Cover Profile Included: The kit includes all hardware required for a finished installation – overlay rails for smooth, guided door travel and a cover profile that conceals the roll mechanism for a seamless, professional appearance when the door is closed.
Technical Specifications
Technical Specifications (Quick Reference)
Specification
Details
Brand
Ebco
Series
Roll Top Pro
Orientation
Vertical
Height
1300mm
Width Options
450mm, 600mm, 900mm
Finish Options
SL (Silver), SF (Special Finish), FG (Frozen Glass finish i.e., frosted translucent PVC material), BL (Black), GW (Glossy White), AT (Anthracite), MC (Mocha)
Included
Overlay rails, cover profile – complete set
Warranty
Ebco manufacturer quality assurance

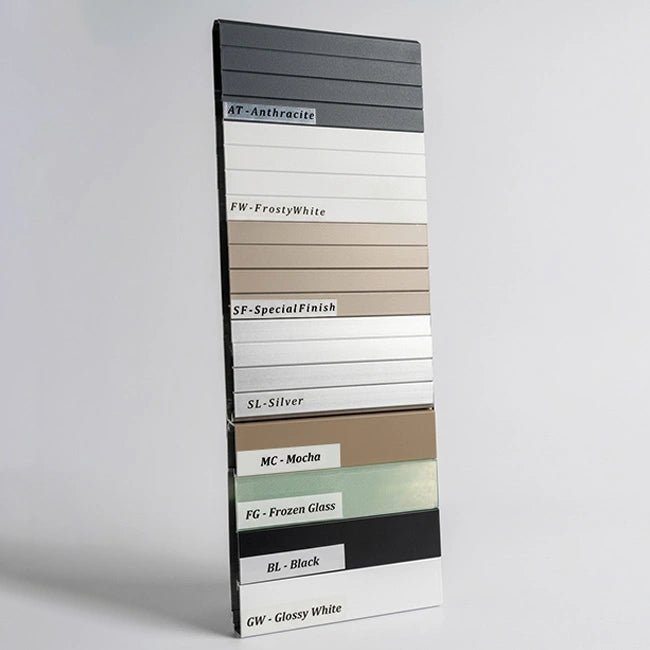

Finish Selection Guide
Code
Finish
Best For
SL
Silver
Contemporary metallic kitchens – coordinates with chrome, stainless, and brushed silver hardware
SF
Special Finish
Premium and bespoke kitchen designs requiring a distinctive finish
FG
Frozen Glass (frosted translucent PVC material)
Premium interiors requiring a glass-look door – diffuses light through the slats while concealing cabinet contents, without the weight or fragility of real glass
BL
Black
Dark, contemporary, and dramatic kitchen schemes – coordinates with black hardware and matt black cabinetry
GW
Glossy White
All-white, Scandinavian, and minimalist kitchens where the roll top door blends seamlessly with white cabinetry
AT
Anthracite
Modern dark-grey kitchen schemes – coordinates with anthracite hardware, handles, and dark-toned cabinetry
MC
Mocha
Warm-toned kitchens with wood veneer, earth-colour laminate, or walnut-toned cabinetry
Width Selection Guide
Width
Best For
450mm
Narrow appliance garages, filler cabinets, and compact storage units where a single small appliance (toaster, kettle) needs to be concealed
600mm
Standard modular kitchen cabinet bays – the most common width for a primary appliance garage housing a coffee machine, microwave, or mixer
900mm
Wide pantry cabinets, large appliance garages housing multiple appliances, and tall storage units in commercial or large residential kitchens
Installation Guidelines
Step-by-Step Installation
Select size and finish: Choose the width (450mm, 600mm, or 900mm) and finish (SL, SF, FG, BL, GW, AT, or MC) to match your cabinet dimension and kitchen design. Confirm the cabinet opening accommodates 1300mm height and the selected width with correct clearances before ordering.
Prepare the cabinet opening: Ensure the internal cabinet height is sufficient for the 1300mm door travel path and the roll mechanism housing at the top – confirm internal clearances from the Ebco installation guide for your specific cabinet construction.
Install overlay rails: Mount the included overlay rails to the cabinet side panels following the Ebco installation specification – rails must be level and parallel for smooth, even door travel.
Attach cover profile: Install the cover profile at the top of the cabinet opening to conceal the roll mechanism housing and create a clean finished appearance when the door is in the closed position.
Mount the roll-up door: Install the vertical roll-up door slat assembly into the rail guides and engage the roll mechanism as per the Ebco product installation guide.
Test and adjust: Roll the door up and down through several full cycles – verify smooth travel without binding, and make any necessary rail alignment or tension adjustments before completing the installation.
Recommended Applications
Where the Ebco Roll Top Pro – Vertical fits best

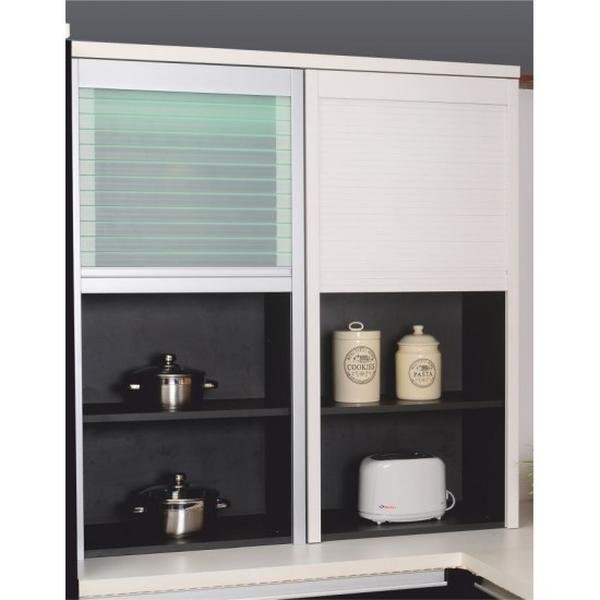

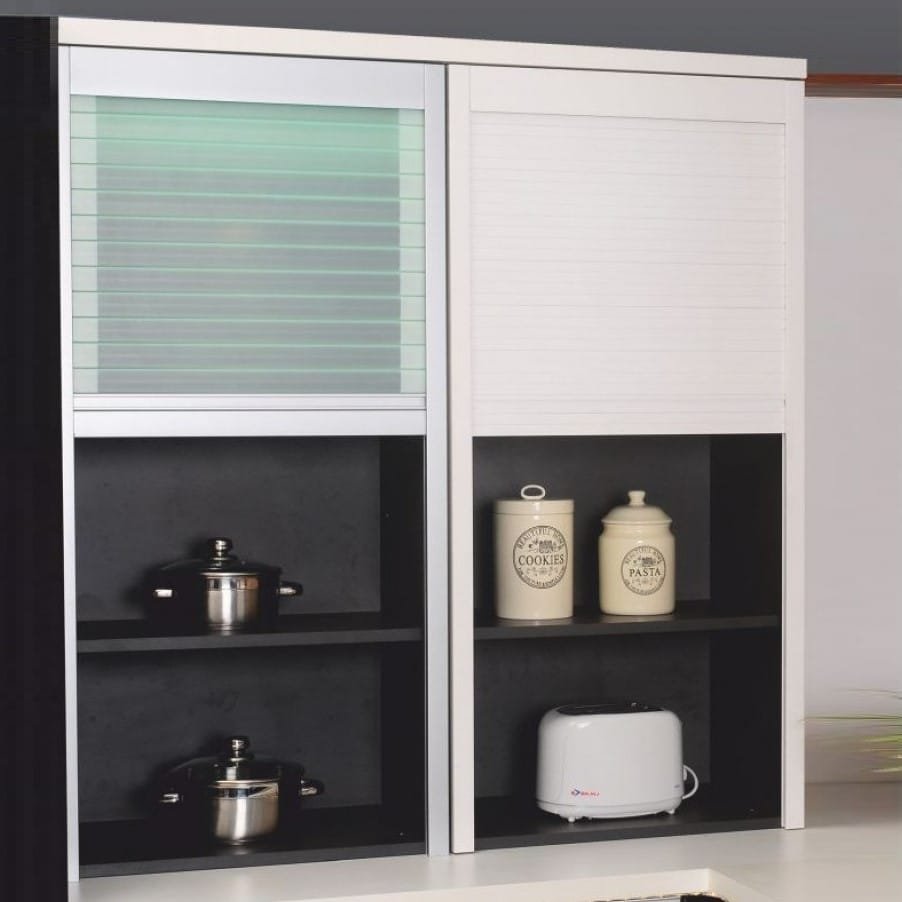

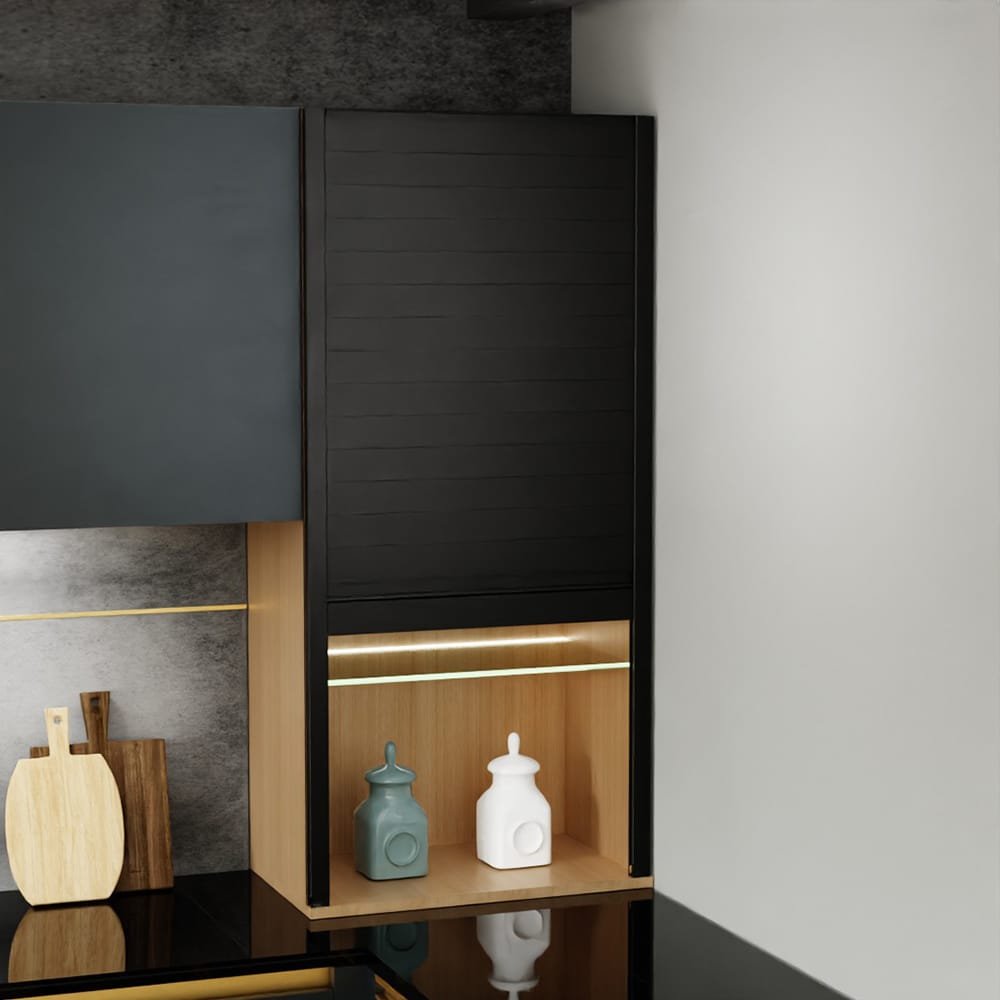

Appliance Garages: Conceals coffee makers, toasters, kettles, mixers, and small kitchen appliances behind a roll-up door – appliances remain plugged in and accessible at the roll of the door without occupying permanent counter space.
Tall Pantry and Storage Cabinets: The 1300mm height suits tall pantry and utility cabinet applications where a full-height door provides access to the complete vertical storage zone in a single smooth motion.
Compact Kitchens – Space-Saving Door Solution: Eliminates the swing clearance required by hinged cabinet doors – ideal for galley kitchens, narrow kitchen layouts, and positions where an outward-opening door would conflict with work counters, adjacent appliances, or kitchen traffic flow.
Premium Modular Kitchen Fitouts: The seven finish options – including the FG Frozen Glass frosted translucent PVC variant – suit high-specification residential kitchens where the roll top door is a visible design feature rather than a utilitarian fitting.
Commercial and Hospitality Kitchens: Office pantry units, hotel room kitchenettes, and hospitality service areas where clean, professional storage with easy roll-up access and a minimal visual footprint are required.
Why Buy from HomeRun?
Authentic Ebco Hardware: Verified genuine products
Complete System Included: Overlay rails and cover profile for professional installation
Bangalore Fulfilment: Quick local availability
Reviews
There are no reviews yet
