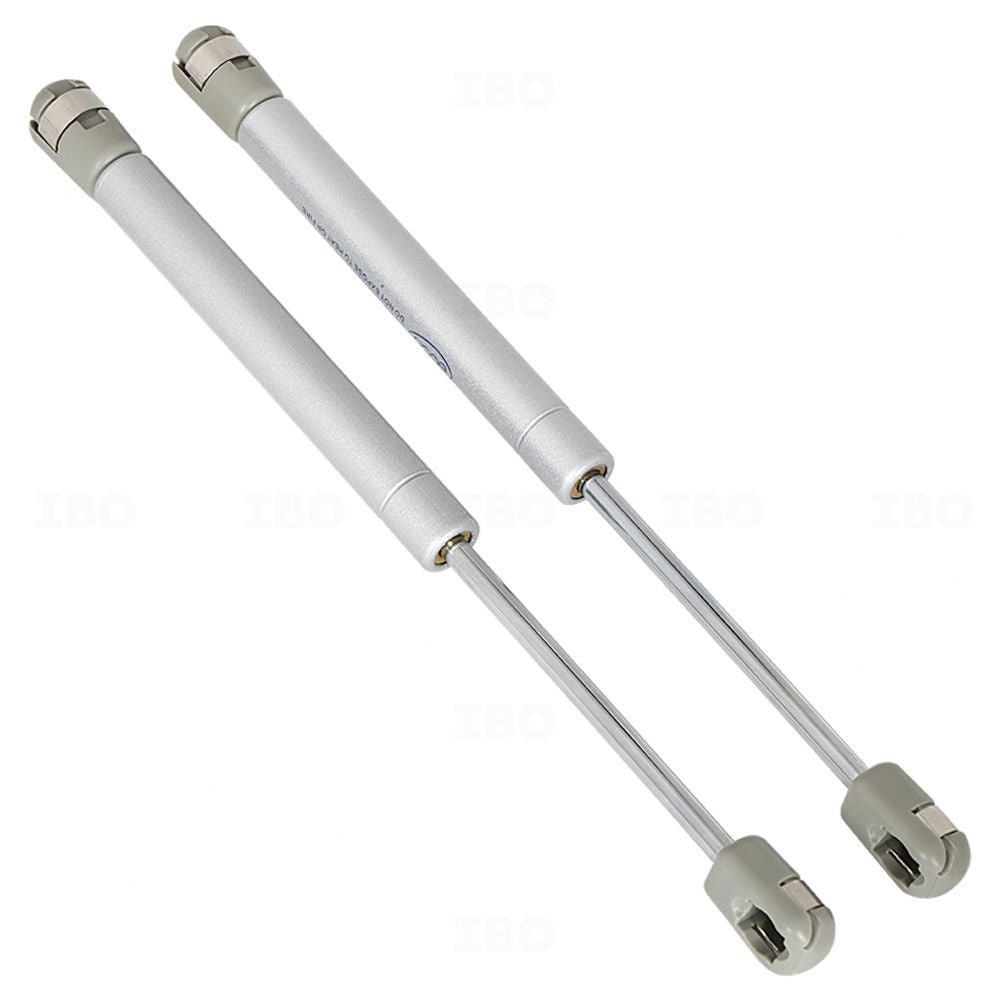

Ebco Pro Lift Cabinet Gas Pump, 20 Kg, Regular Close, PLC-20

Ebco Pro Lift Cabinet Gas Pump PLC-20 provides effortless overhead cabinet access with premium gas spring technology. The 200N hydraulic mechanism ensures smooth, controlled lift-up operation with soft-close function that prevents slamming and protects your cabinet structure.
This complete installation kit supports cabinet doors up to 20kg and holds them at any angle for convenient access. The corrosion-resistant construction withstands kitchen humidity and heat, while the silver finish complements contemporary kitchen designs. Perfect for modular kitchens, wardrobes, and commercial installations.

Technical Specifications (Quick Reference)

Specification
Details

Manufacturer
EBCO

Model Code
PLC-20

Type
Hydraulic Gas Pump Lift-Up System

Force Rating
200N (Newton)

Weight Capacity
20Kg maximum

Finish
Silver powder-coated

Material
High-grade steel with hydraulic damper

Opening Angle
Up to 90-100 degrees

Warranty
12 months manufacturer warranty

Complete Package Includes

1 ? Hydraulic Gas Pump Unit (200N, 20Kg capacity)
Mounting Brackets (Left and Right)
Installation Clips for secure attachment
Fixing Screws and hardware kit
Installation Instructions with mounting guide

Recommended Applications

Overhead Kitchen Cabinets: Perfect for wall-mounted upper cabinets in modular kitchens

Appliance Garages: Ideal for lift-up doors concealing microwaves and small appliances

Wardrobe Top Boxes: Great for upper storage compartments in wardrobes and closets

Commercial Kitchens: Suitable for restaurant and hotel cabinet installations

Utility Cabinets: Excellent for laundry room and storage area overhead units

Installation Guidelines

Measure Cabinet Door Weight: Ensure door weight does not exceed 20Kg maximum capacity

Mark Mounting Positions: Mark bracket positions on cabinet frame and door according to instructions

Install Bottom Bracket: Attach bottom bracket to cabinet base using provided screws

Install Top Bracket: Fix top bracket to cabinet door at marked position

Test and Adjust: Test opening and closing motion, adjust bracket positions for optimal performance

Professional TipUse one set of gas pumps for cabinet doors up to 600mm width. For wider doors (600-900mm), install two sets for balanced lifting and optimal performance.

Important Safety NoticeDo not exceed 20Kg weight capacity. Ensure proper installation by qualified professionals for warranty validity. Check door weight before purchase to select appropriate force rating.
