Ebco Hi Slide 50 Reversible Sliding Mechanism is a premium sliding door system engineered for modern wardrobes and cabinets. This versatile mechanism supports both concealed and external installations, making it ideal for various design preferences and space configurations.
The inbuilt soft-close mechanism ensures smooth, silent door operation while preventing slamming and protecting your furniture from impact damage. With a 50kg load capacity per door, this system handles standard wardrobe doors with ease, accommodating widths from 300mm to 1200mm and heights up to 2500mm.
Technical Specifications (Quick Reference)
Specification
Details
Article Codes

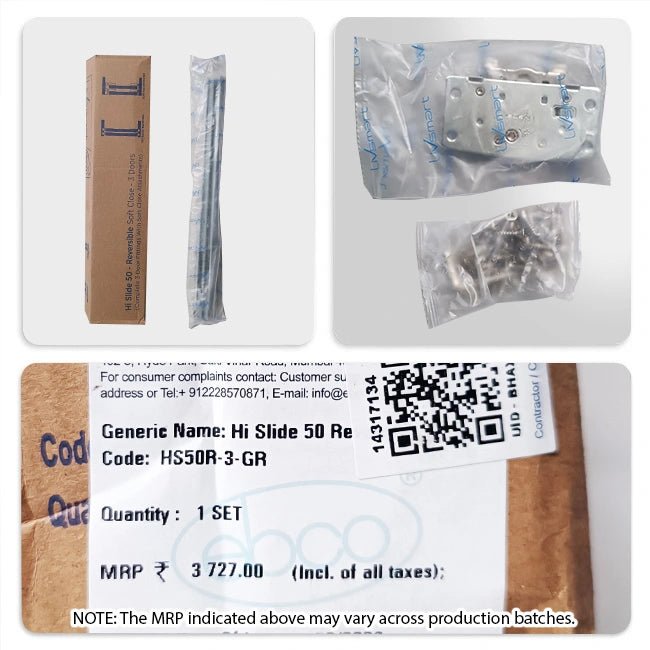

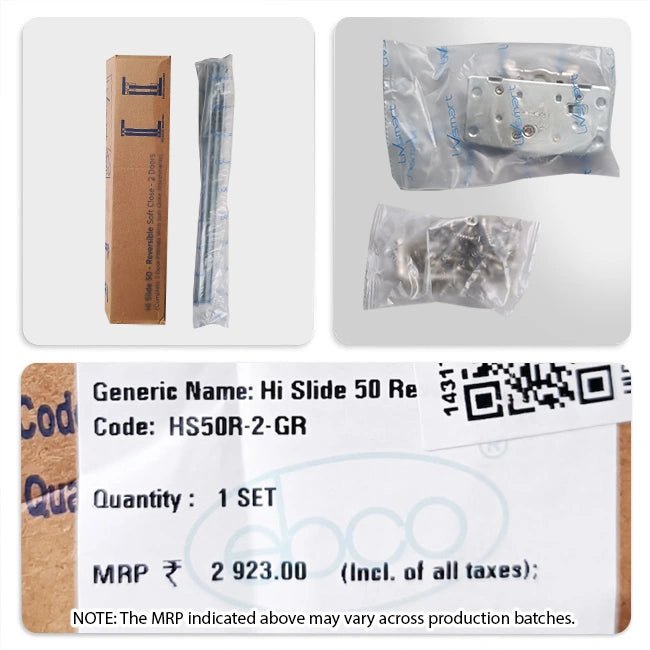

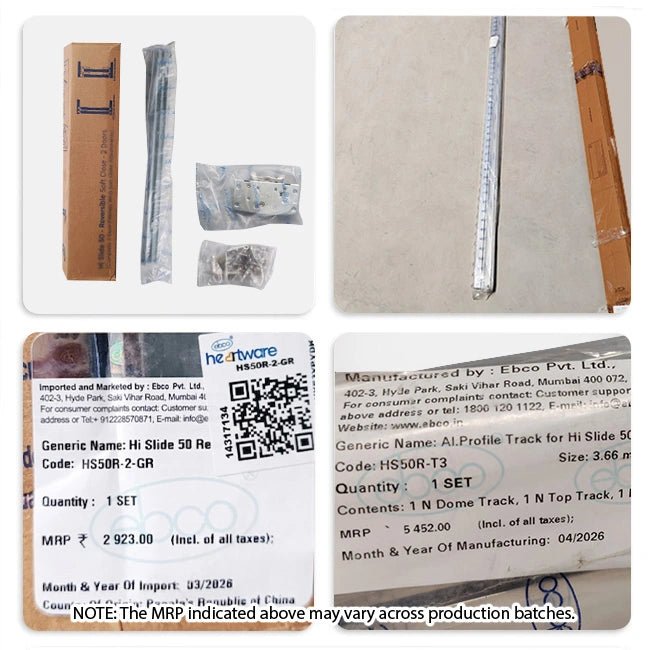

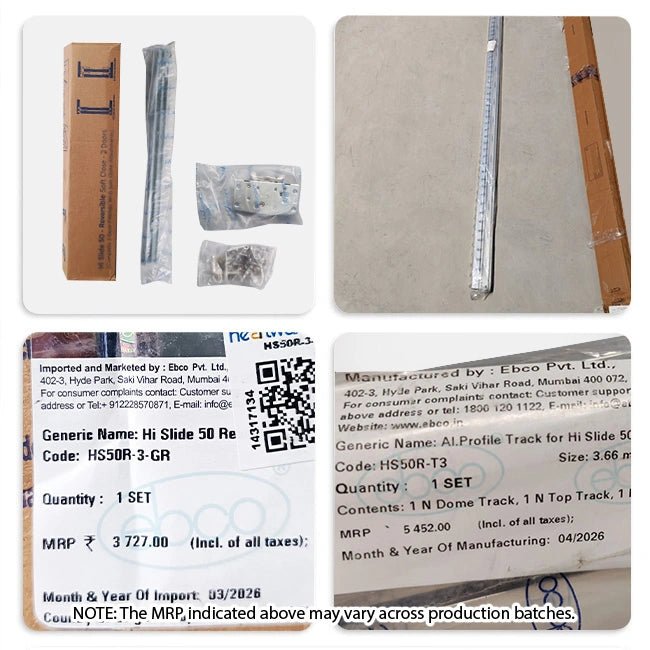

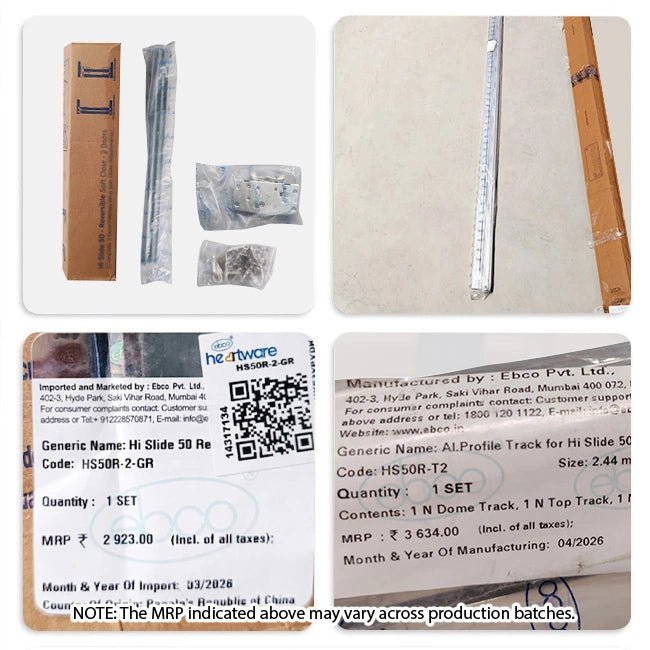

HS50R-2 (2 Door), HS50R-3 (3 Door), HS50R-T2 (2.44m Track), HS50R-T3 (3.66m Track)
Load Capacity
Single Door ? 50kg
Door Width
300mm – 1200mm
Door Height & Thickness
? 2500mm, 18 to 30mm
Installation Type
Concealed or External
Soft Close
Inbuilt Mechanism
Finish
Mechanism: Grey, Track: Anodized Silver
Packaging
1 Set
Recommended Applications

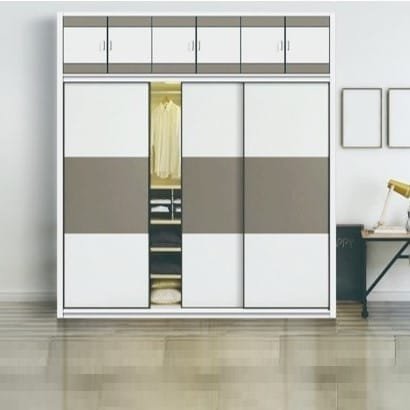

Wardrobe Sliding Doors: Perfect for modern bedroom wardrobes with 2 or 3 sliding door panels
Walk-In Closets: Create smooth-operating sliding door systems for luxury closet spaces
Room Dividers: Install as space-saving sliding partitions in studios and open-plan homes
Cabinet Doors: Ideal for large storage cabinets and entertainment units requiring sliding access
Commercial Installations: Suitable for retail fitting rooms, hotel wardrobes, and office storage systems
Installation Guidelines
Select Configuration: Choose 2-door or 3-door mechanism and appropriate track length (2.44m/8ft or 3.66m/12ft)
Install Track: Mount the anodized silver track securely to the top of the wardrobe or cabinet opening
Attach Mechanism to Doors: Fix the grey sliding mechanism to each door panel according to installation instructions
Hang Doors on Track: Carefully lift and position each door onto the track system
Adjust and Test: Fine-tune door alignment and test the soft-close mechanism for smooth, silent operation
