Ebco Eurolift Bi-Fold Door System, Soft Close, Anthracite

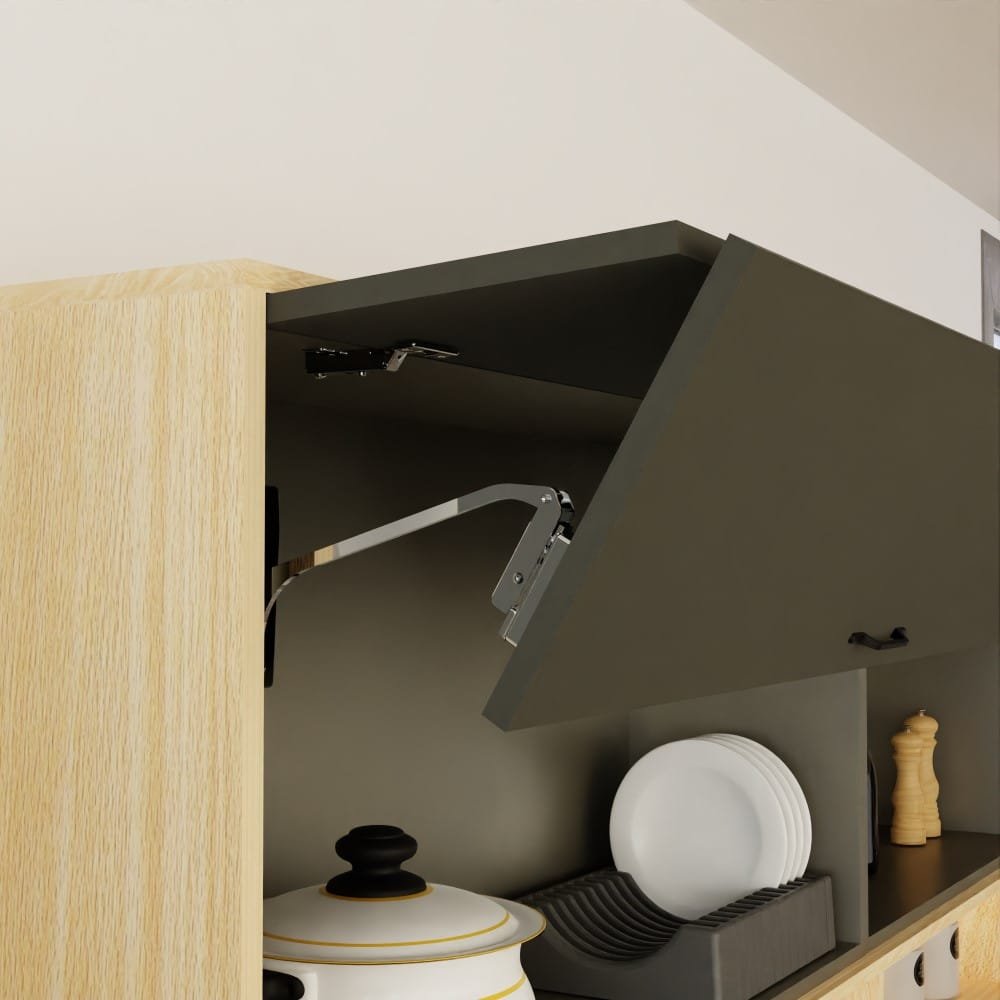

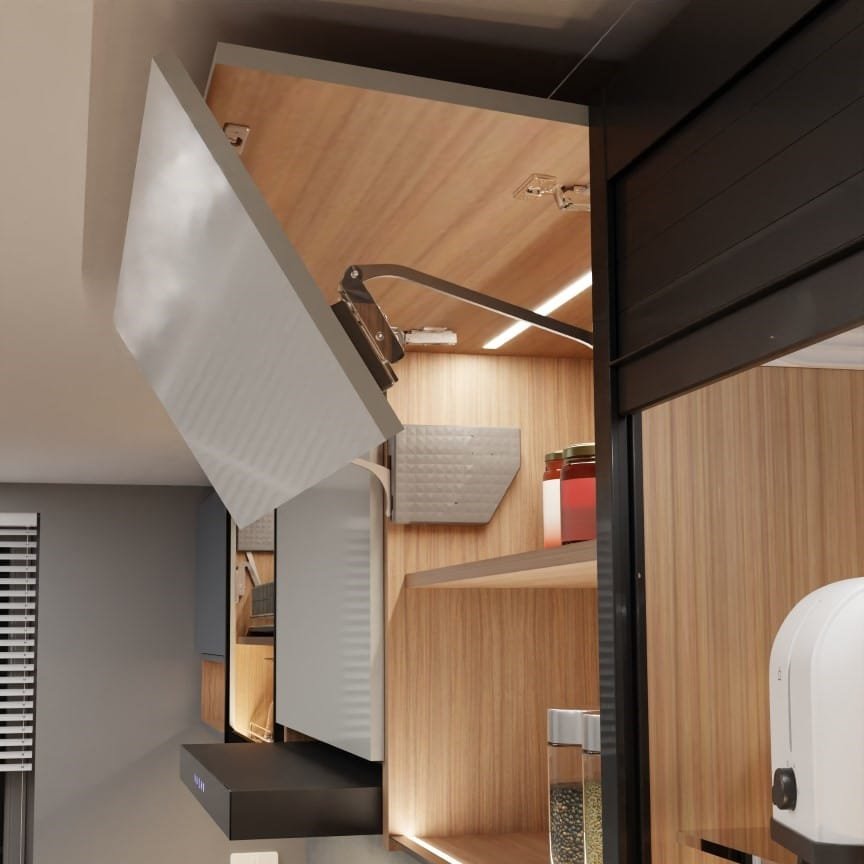

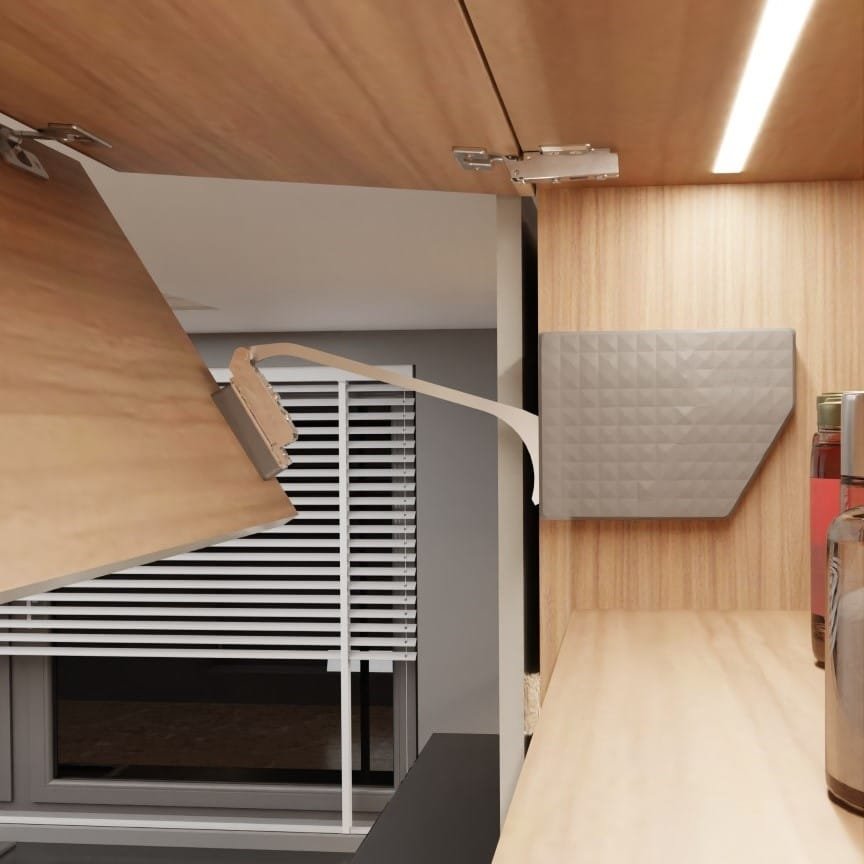

Ebco Eurolift Bi-fold Door System revolutionizes overhead cabinet access with its innovative dual-door vertical folding mechanism. Both doors fold upward in perfect synchronization, creating wide, unobstructed access to your overhead storage while the built-in soft-close damping ensures silent, gentle closing every time.

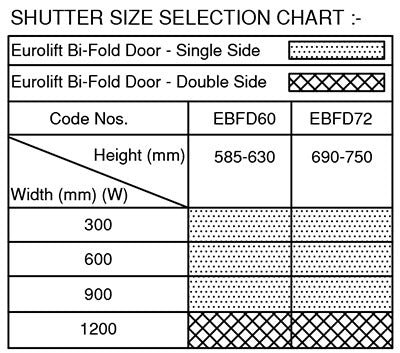

Available in two height ranges (600mm for 585-630mm cabinets and 720mm for 690-750mm cabinets) with left or right side mounting options, this anthracite-finished system accommodates cabinets up to 900mm wide. The complete installation kit includes the bi-fold lift mechanism, cover plate, hinge clip-on bracket, and all necessary mounting hardware for professional installation.

Technical Specifications (Quick Reference)

Specification
Details

Manufacturer
Ebco

Mechanism Type
Dual-door vertical bi-fold

Finish
Anthracite

600mm Model Range
585-630mm cabinet height

720mm Model Range
690-750mm cabinet height

Mounting Options
Left (L) or Right (R) side specific

Cabinet Width
Up to 900mm (single side); use double for >900mm

Door Compatibility
Aluminum profile or wooden doors

Package Contents
Bi-fold lift mechanism, cover plate, hinge clip-on bracket, mounting plates and screws

Recommended Applications

Overhead Kitchen Cabinets: Perfect for upper wall units requiring wide access

Modern Wall Units: Contemporary kitchen designs with handleless aesthetics

Premium Modular Kitchens: High-end installations requiring smooth operation

Space-Constrained Areas: Where traditional swing doors would obstruct movement

Handleless Cabinet Doors: Sleek, minimalist kitchen designs

Residential Renovations: Upgrade existing overhead cabinets with modern mechanisms

Installation Guidelines

Measure Cabinet Height: Select 600mm (585-630mm) or 720mm (690-750mm) model based on cabinet dimensions

Determine Mounting Side: Choose Left (L) or Right (R) side mounting based on cabinet configuration

Install Mounting Plates: Attach mounting plates to cabinet interior using provided screws

Mount Bi-fold Mechanism: Secure the lift mechanism to installed mounting plates

Attach Hinge Brackets: Install clip-on hinge brackets to cabinet doors

Connect Doors: Attach doors to bi-fold mechanism and adjust for smooth operation

Install Cover Plate: Add cover plate for finished appearance

Test Soft-Close: Verify smooth upward folding and soft-close damping function
