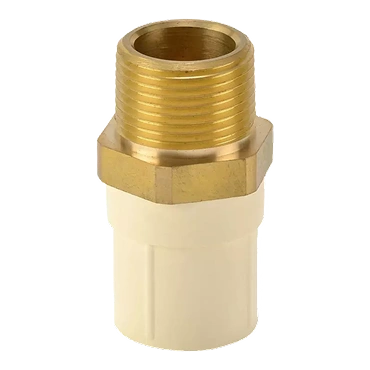

Ashirvad Flowguard Plus Male Adapter Brass Threaded – MABT

Ashirvad Flowguard Plus Male Adapter Brass Threaded (MABT) provides the essential link between CPVC piping systems and female threaded plumbing components. This hybrid fitting features a CPVC socket connection on one end for permanent solvent welding to pipes, and a brass male threaded connection on the other end for screwing into female threaded tanks, valves, or equipment. The brass threading ensures long-term reliability and allows for easy disassembly when needed.
The corrosion-resistant brass male threads maintain integrity in both hot and cold water applications, while the CPVC body ensures full compatibility with Flowguard Plus systems. Essential for overhead tank connections, equipment installations, and any application requiring connection to female threaded components. The removable threaded connection provides maintenance access without cutting pipes, making it ideal for equipment that may require future replacement.

Technical Specifications (Quick Reference)

Specification
Details

Fitting Type
Male Adapter Brass Threaded (MABT)

Body Material
CPVC with brass male threaded insert

Maximum Temperature
93?C (200?F) continuous service

Pressure Rating
PN 15 (15 kg/cm? at 25?C)

Connections
Socket (solvent weld) + Male brass thread (MPT)

Standards
ASTM D2846, NSF certified

Recommended Applications

Overhead Tank Connections: Connecting CPVC pipes to female threaded tank outlets and inlets

Equipment Installations: Connecting to pumps, filters, and water treatment equipment with female threads

Valve Connections: Installing into female threaded ball valves and gate valves

Geyser Hookups: Connecting to water heater female threaded inlets/outlets

Manifold Systems: Creating male threaded connections for distribution manifolds

Appliance Connections: Any equipment requiring male threaded pipe connections

Installation Guidelines

Pipe Preparation: Cut CPVC pipe squarely; deburr and chamfer pipe end at 10-15? angle

Socket Connection: Clean pipe end and adapter socket; apply CPVC solvent cement; insert pipe with quarter turn and hold 30 seconds

Curing Time: Allow 24 hours for solvent cement to cure before connecting threaded components

Thread Preparation: Wrap male brass threads with 3-4 layers of PTFE tape in clockwise direction

Threaded Connection: Hand-tighten into female threaded component; use wrench for final 1-2 turns; avoid over-tightening
