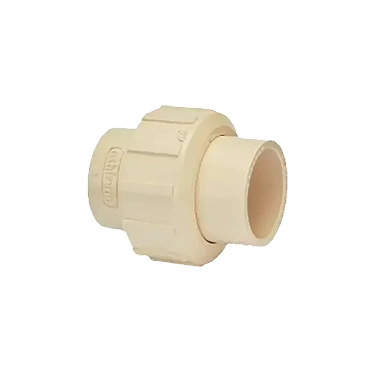

Ashirvad Flowguard Plus CPVC Union

Ashirvad Flowguard Plus CPVC Union provides a unique combination of permanent pipe connections with the ability to disconnect when needed. This three-piece fitting consists of two socket ends that are solvent-welded to pipes, plus a threaded collar nut that joins them together. The union allows for easy disassembly without cutting pipes, making it essential for equipment that requires periodic maintenance or replacement.
The precision-machined sealing surfaces ensure leak-free operation under full system pressure, while the robust threaded nut provides secure connection strength. Ideal for installations before water heaters, pumps, filters, and other equipment requiring future access. The CPVC construction maintains compatibility with the complete Flowguard Plus system while offering the serviceability of a threaded connection.

Technical Specifications (Quick Reference)

Specification
Details

Fitting Type
Union (Detachable Connection)

Material
CPVC (Chlorinated Polyvinyl Chloride)

Maximum Temperature
93?C (200?F) continuous service

Pressure Rating
SDR-11 (PN 15 / 15 kg/cm? at 25?C)

Connection Type
Socket (solvent weld) + Threaded collar nut

Standards
ASTM D2846, NSF certified for potable water

Recommended Applications

Water Heater Connections: Before and after geysers for easy removal during maintenance or replacement

Pump Installations: On suction and discharge sides of water pumps for servicing access

Filter Systems: Before water filters, RO systems, and treatment equipment requiring periodic replacement

Equipment Connections: Any appliance or device that may need future disconnection

Meter Installations: Before and after water meters for easy removal and replacement

Valve Access: Providing disconnection points for valve replacement without system drainage

Installation Guidelines

Pipe Preparation: Cut both pipes squarely; deburr and chamfer pipe ends at 10-15? angle

Union Assembly: Slide collar nut onto one pipe before cementing; solvent-weld both union halves to respective pipes

Curing Time: Allow 24 hours for solvent cement to cure completely before assembling union

Union Connection: Bring union halves together; hand-tighten collar nut, then use wrench for final 1-2 turns

Testing: Pressurize system and check for leaks at union seal; retighten if necessary
