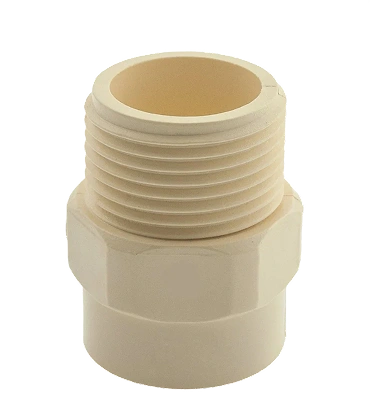

Ashirvad Flowguard Plus CPVC Male Adapter Plastic Threaded – MAPT

Ashirvad Flowguard Plus CPVC Male Adapter Plastic Threaded (MAPT) provides an economical all-plastic solution for connecting CPVC pipes to female threaded components. This fitting features integrated CPVC male threads molded directly into the body, eliminating metal components while maintaining full system compatibility. The male plastic threads screw into female threaded plastic fittings, tank connections, or accessories.
The monolithic CPVC construction ensures uniform thermal expansion characteristics throughout the fitting, preventing stress from differential expansion between materials. Ideal for overhead tank connections, plastic valve installations, and applications where metal contact is undesirable or where cost optimization is important. The plastic threads provide adequate strength for residential plumbing while offering corrosion immunity and lighter weight compared to brass alternatives.

Technical Specifications (Quick Reference)

Specification
Details

Fitting Type
Male Adapter Plastic Threaded (MAPT)

Material
CPVC with molded plastic male threads

Maximum Temperature
93?C (200?F) continuous service

Pressure Rating
PN 15 (15 kg/cm? at 25?C)

Connections
Socket (solvent weld) + Male plastic thread (MPT)

Standards
ASTM D2846, NSF certified

Recommended Applications

Overhead Tank Connections: Connecting CPVC pipes to plastic tank outlets and inlets

Plastic Valve Installations: Connecting to female threaded plastic ball valves

Float Valve Connections: Tank float valve installations with plastic threads

Cost-Sensitive Projects: Budget-conscious installations where brass is not required

Corrosive Environments: Applications where metal corrosion is a concern

Residential Plumbing: Standard home plumbing where plastic threads are adequate

Installation Guidelines

Pipe Preparation: Cut CPVC pipe squarely; deburr and chamfer pipe end at 10-15? angle

Socket Connection: Clean pipe end and adapter socket; apply CPVC solvent cement; insert pipe with quarter turn

Curing Time: Allow 24 hours for solvent cement to cure before connecting threaded components

Thread Preparation: Wrap male plastic threads with 2-3 layers of PTFE tape in clockwise direction

Threaded Connection: Hand-tighten into female threaded component; use minimal wrench force to avoid cracking threads
