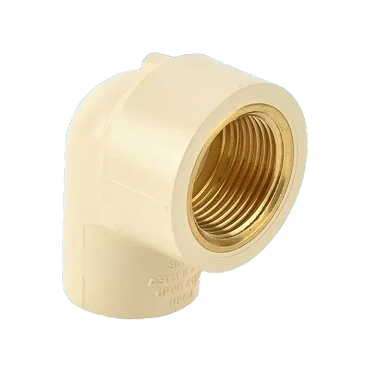

Ashirvad Flowguard Plus CPVC 90? Elbow Brass

Ashirvad Flowguard Plus CPVC 90? Elbow Brass bridges the gap between CPVC piping systems and threaded plumbing fixtures. This hybrid fitting features a CPVC socket connection on one end for solvent welding to CPVC pipes, and a brass female threaded connection on the other end for attaching taps, showers, geysers, and other threaded fixtures. The 90-degree configuration allows for right-angle transitions from pipe to fixture.
The brass threaded insert is securely molded into the CPVC body, creating a permanent, leak-resistant connection point. The corrosion-resistant brass ensures long-term reliability when connecting to metal fixtures, while the CPVC body maintains compatibility with the complete Flowguard Plus system. Essential for fixture connections, appliance hookups, and transitioning between CPVC and threaded components.

Technical Specifications (Quick Reference)

Specification
Details

Fitting Type
90? Brass Elbow (CPVC to Thread)

Body Material
CPVC with brass threaded insert

Maximum Temperature
93?C (200?F) continuous service

Pressure Rating
PN 15 (15 kg/cm? at 25?C)

Connections
Socket (solvent weld) + Female brass thread (FPT)

Standards
ASTM D2846, NSF certified

Recommended Applications

Fixture Connections: Connecting CPVC supply lines to taps, showers, and basin mixers

Geyser Installations: Hot and cold water connections to water heater threaded inlets/outlets

Appliance Hookups: Washing machines, dishwashers, and water purifier connections

Valve Mounting: Connecting CPVC pipes to threaded ball valves and shut-off valves

Tank Connections: Overhead tank outlet connections to distribution pipes

Fixture Supply Lines: Final connections from concealed piping to visible fixtures

Installation Guidelines

Pipe Preparation: Cut CPVC pipe squarely; deburr and chamfer at 10-15? angle

Socket Connection: Clean pipe end and socket; apply CPVC solvent cement; insert pipe with quarter turn and hold 30 seconds

Thread Preparation: Wrap brass female threads with 3-4 layers of PTFE tape in clockwise direction

Fixture Connection: Hand-tighten threaded fixture into brass insert; use wrench for final 1-2 turns; do not over-tighten

Testing: Allow 24 hours curing before pressurizing; check for leaks at both connections
